Driving Simulator for T-72 Tank (Zen T-72 DS)

Interactive Controls Familiarisation

  • Instruments, indicators and gauges
  • Controls

Starting Drills & Procedures

  • Battery (normal) start
  • Air start
  • Combined starting

Driving Techniques

  • Operation of accelerator, clutch, brakes and gears
  • Basic driving on plain terrain
    • Day & Night Driving
  • Obstacle Negotiation
    • Trench crossing
    • Vertical obstacles (less than 1 mtr height)
    • Gradients
  • Crossing of bridges including BLT laid bridges
  • Loading & Unloading of Tank
    • Tank transporter trailer
    • Railway rolling stock
  • Advance driving training
    • Driving in desert terrains
    • Driving in built-up areas
    • Shallow and deep fording
    • Navigation with gyro indicator

Stopping Drills & Procedures

Simulator is configured as a containerised simulator for easy transportation and easy start-up. It can be provided as a fixed installation if desired. The simulator consists of the following major components:

  • Instructor Station:
    • Instructor operating console with multiple displays for trainee monitoring
    • Intercom Unit
    • Computer systems rack
    • Power conditioning equipment
    • Motion platform control unit
  • Driver Station:

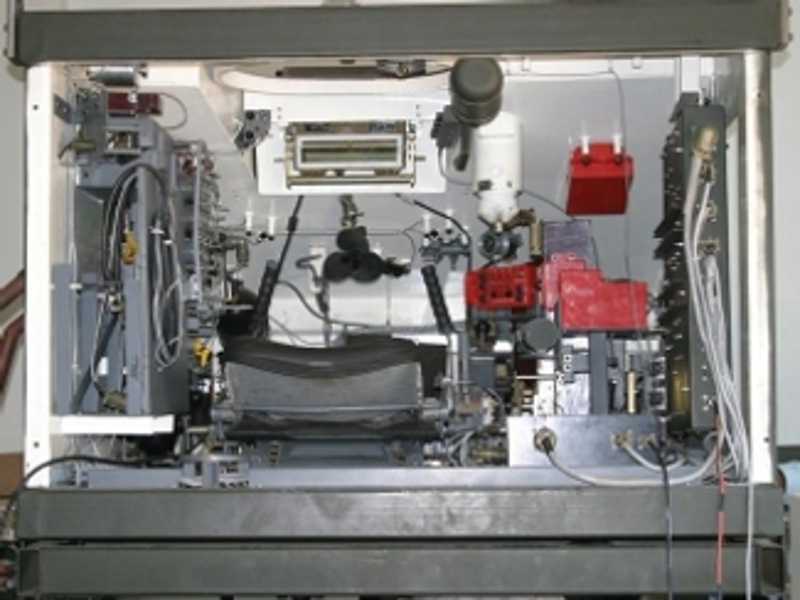

    • Driver compartment mock-up
    • OTW display system for view through main periscope
    • Adjustable driver seat
    • All operational driver controls
    • Indicators, instruments and gauges
    • Intercom Unit
  • Motion Platform:
    • 6 DoF electric motion platform
    • Provides realistic motion feel during driving through rotation and translation motion controls
  • Optional:
    • 30 KVA, 3 Phase, 220 V Ph-N, 50Hz diesel generator set

The following main software components of the Zen T-72 DS work together to provide a reliable training environment for driver trainees:

The Instructor Station software provides for all instructor functions through

  • An intuitive, easy to use GUI
  • Display of driver compartment control status
  • Session control
    • Terrain/exercise selection
    • Insertion/removal of faults
    • After Action Review
  • Trainee records, performance evaluation and report generation
  • System health check

The Visual System software generates realistic visuals using

  • Several 3D terrains including plains, desert etc
  • 3D modelled terrain objects and model library
  • Environmental controls: ambient light as per time of day
  • Realistic smoke and dust generation

The Input/Output System software takes the trainee into the loop by

  • Sensing all controls operations
  • Providing all system interlocks
  • Implementing realistic mathematical models for various automotive elements of the Tank
  • Generating output signals for all indicators, meters and gauges
  • Generating motion cues

The Audio System software generates realistic aural inputs that the driver hears while in the driver compartment.

The driving simulator is designed for quick integration with the gunnery simulator for Tank T-72 (Zen T-72 GS) or the Tank T-72 Crew Gunnery Simulator. This allows for integrated training of the Tank crew in combat situations.

The modular nature of all components of the Zen T-72 DS allows immense flexibility and Zen offers customized simulators for all variants of driving simulators for this series of armoured vehicles as well as for user-specified vehicles.

The simulator is backed by more than 15 years of experience in development of simulators to meet operator-training needs for a wide range of vehicular equipment. The simulator is characterized by emphasis on essential training elements.

Zen design, product engineering and after sales service assure users of a high MTBF and a low MTTR, in order that high simulator availability is ensured.
