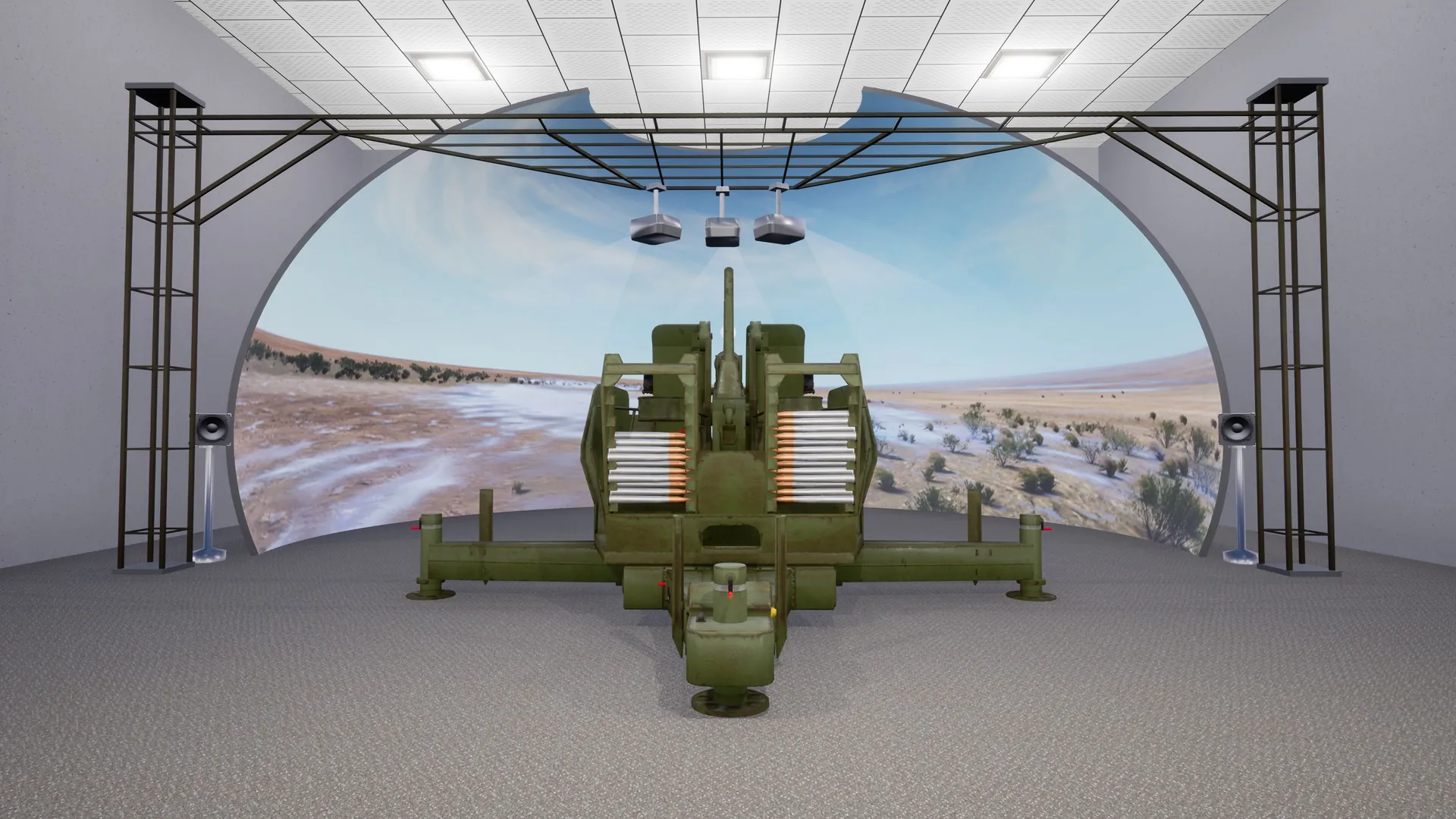

Integrated Air Defence Combat Simulator (Zen IADCS)

Zen IADCS is a state-of-the-art virtual simulator for training of L 70 and ZU 23-2 guns crews with enhanced realism in weapon handling combined with realistic battle scenarios. Zen IADCS can transform the AD crews to deliver accurate firepower.

IADCS WILL ENSURE...
  • REDUCED WEAR AND TEAR OF COMBAT EQUIPMENT.
  • HUGE SAVINGS IN OVERALL COSTS OF TRAINING.
  • QUANTIFIED ASSESSMENT.
  • PROGRESSIVE SKILL DEVELOPMENT.

Salient Features

  • Opportunity for unlimited live-fire practice in the unit training area.
  • Zero expenditure of ammunition.
  • Crews feel realistic fire-effects such as recoil, shock, jerk, flash, smoke etc.
  • Opportunity to train on realistic air threat from potential adversaries.
  • Training on multiple 3D terrains in realistic battle environment.
  • Training to deploy fire units on multiple VAs/VPs.
  • Provision to train on multiple types of air and ground threat profiles.
  • Quantified and real-time assessment of trainee performance.
  • Generation of Combat Readiness Score (CRS) as a measure of trainee skill.
  • After Action Review for analysis and course correction.
  • System Operation Modules/Components

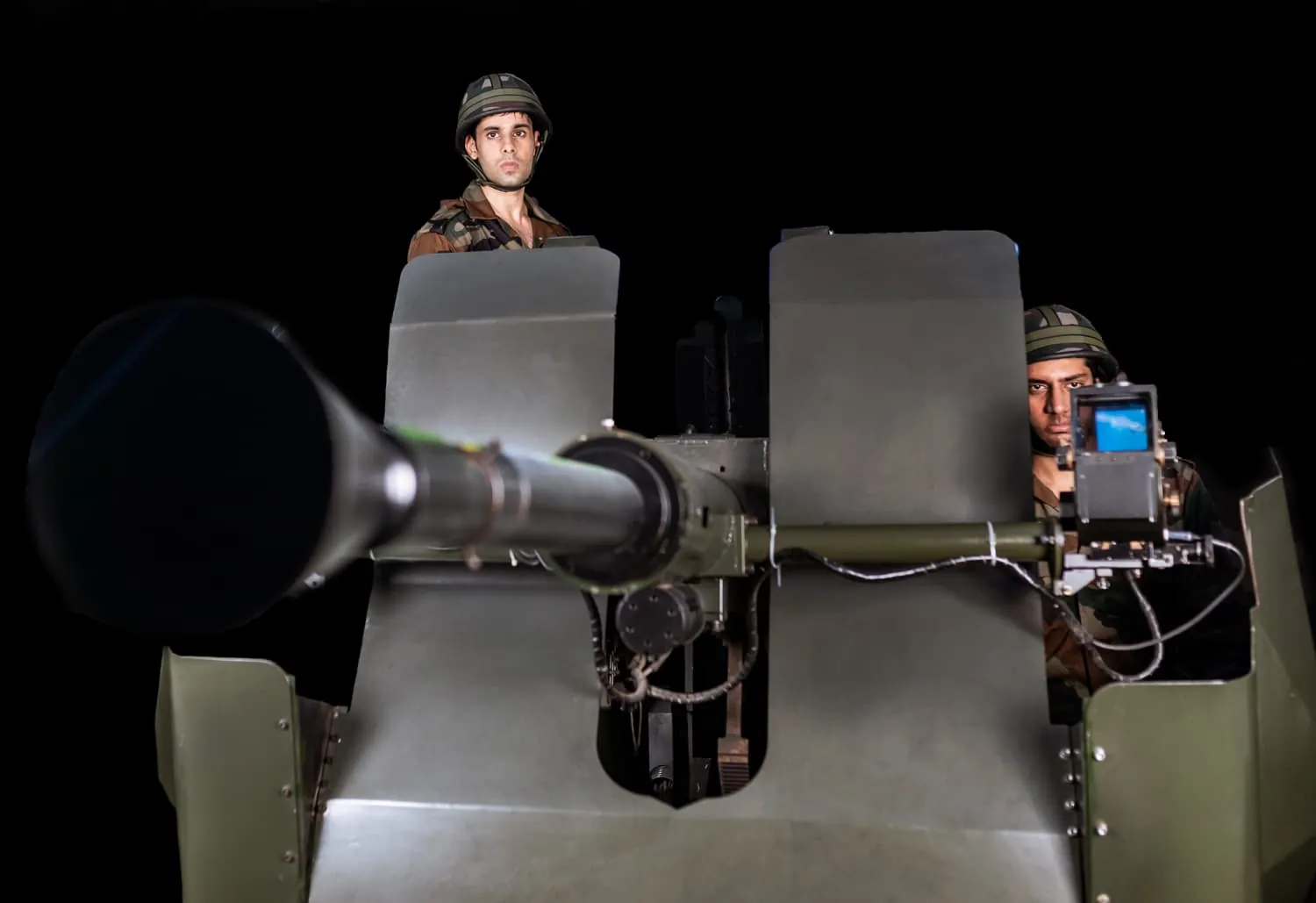

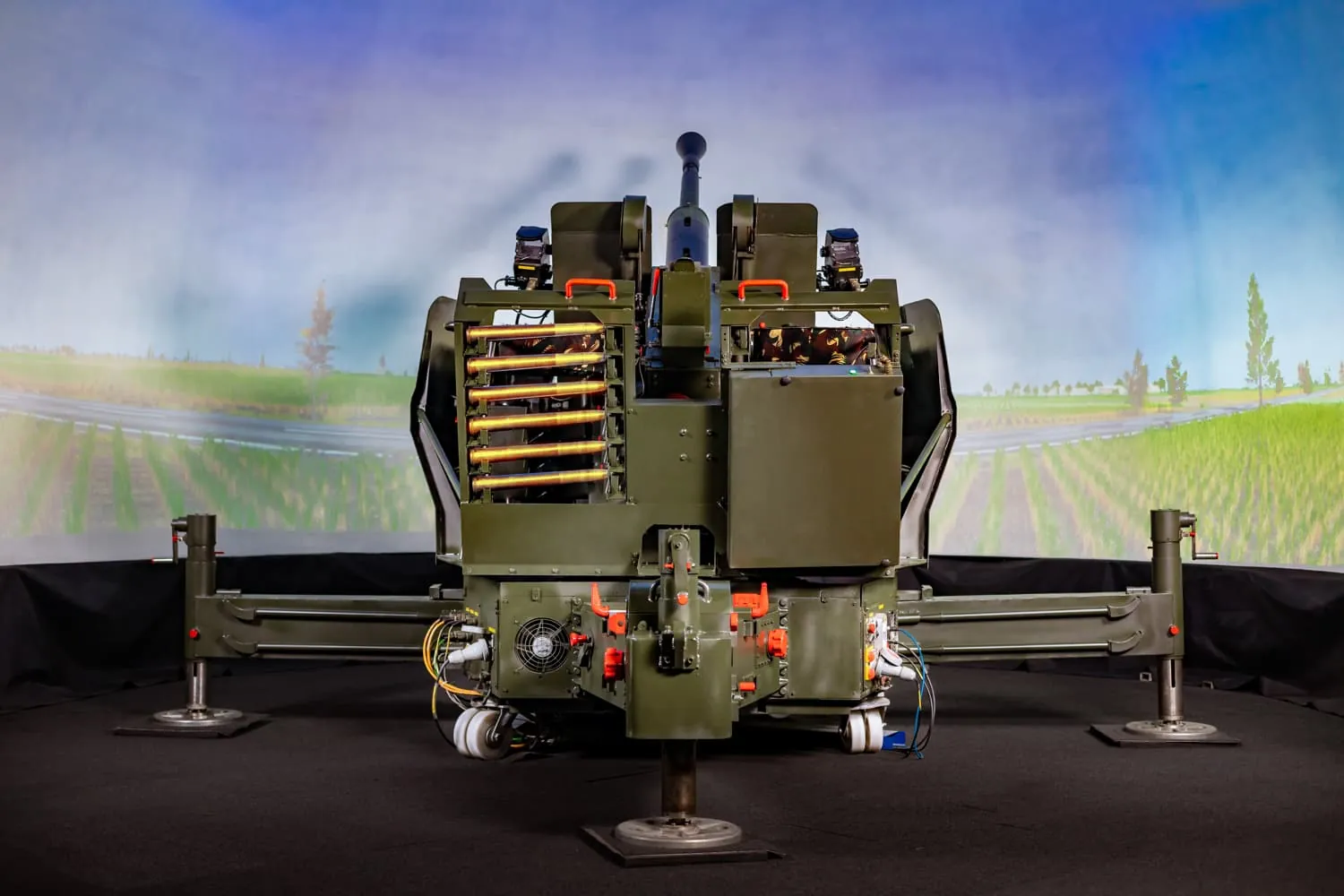

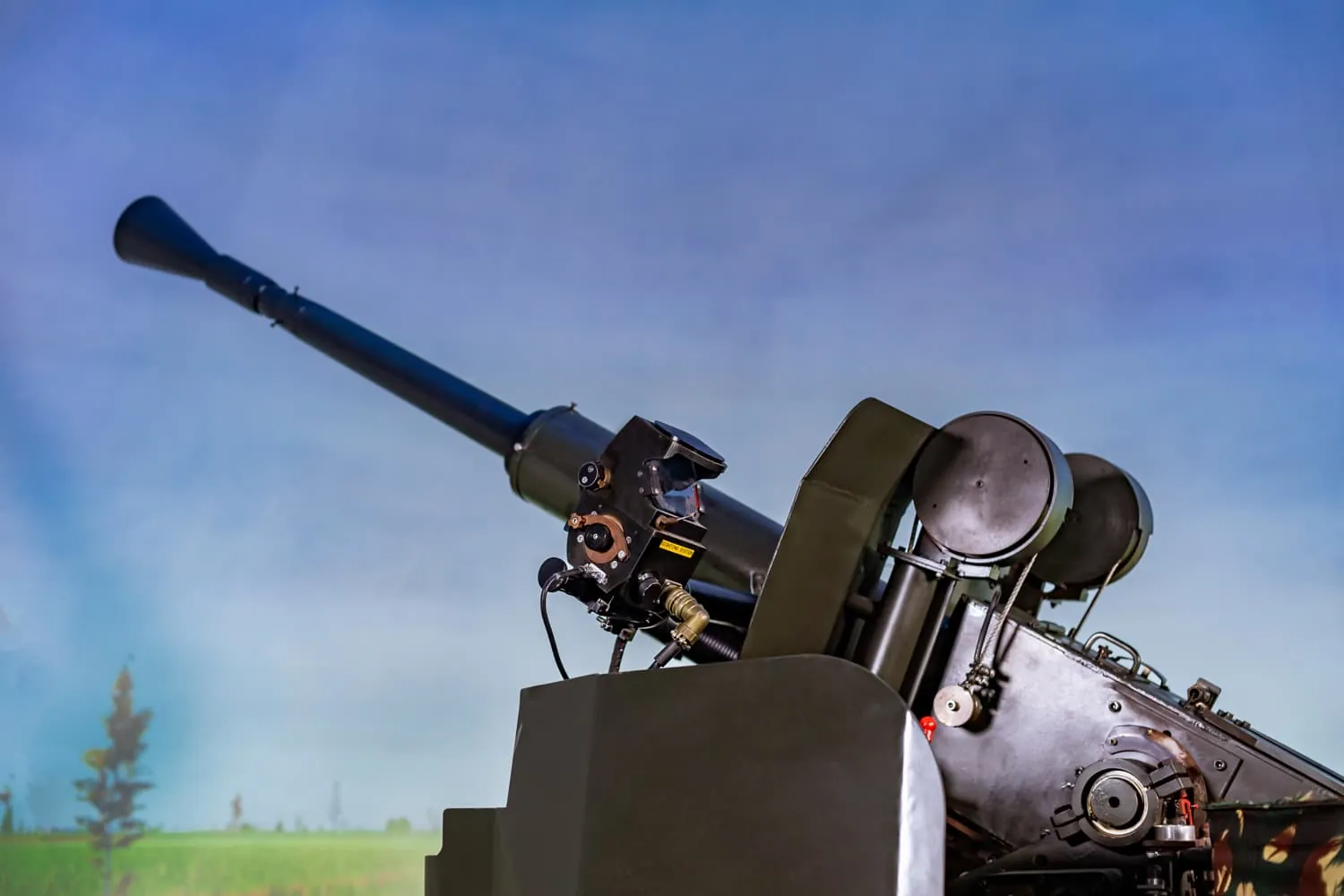

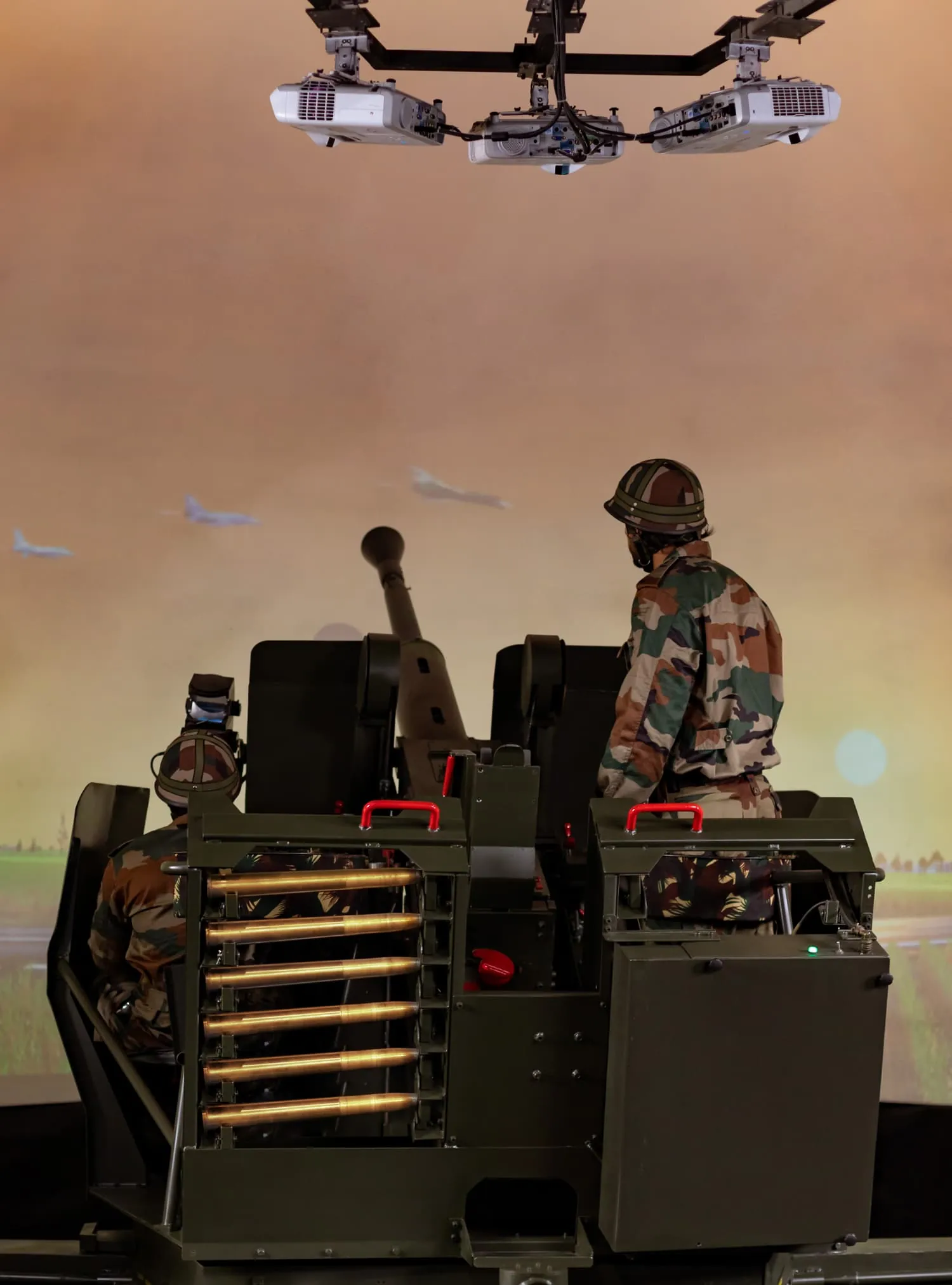

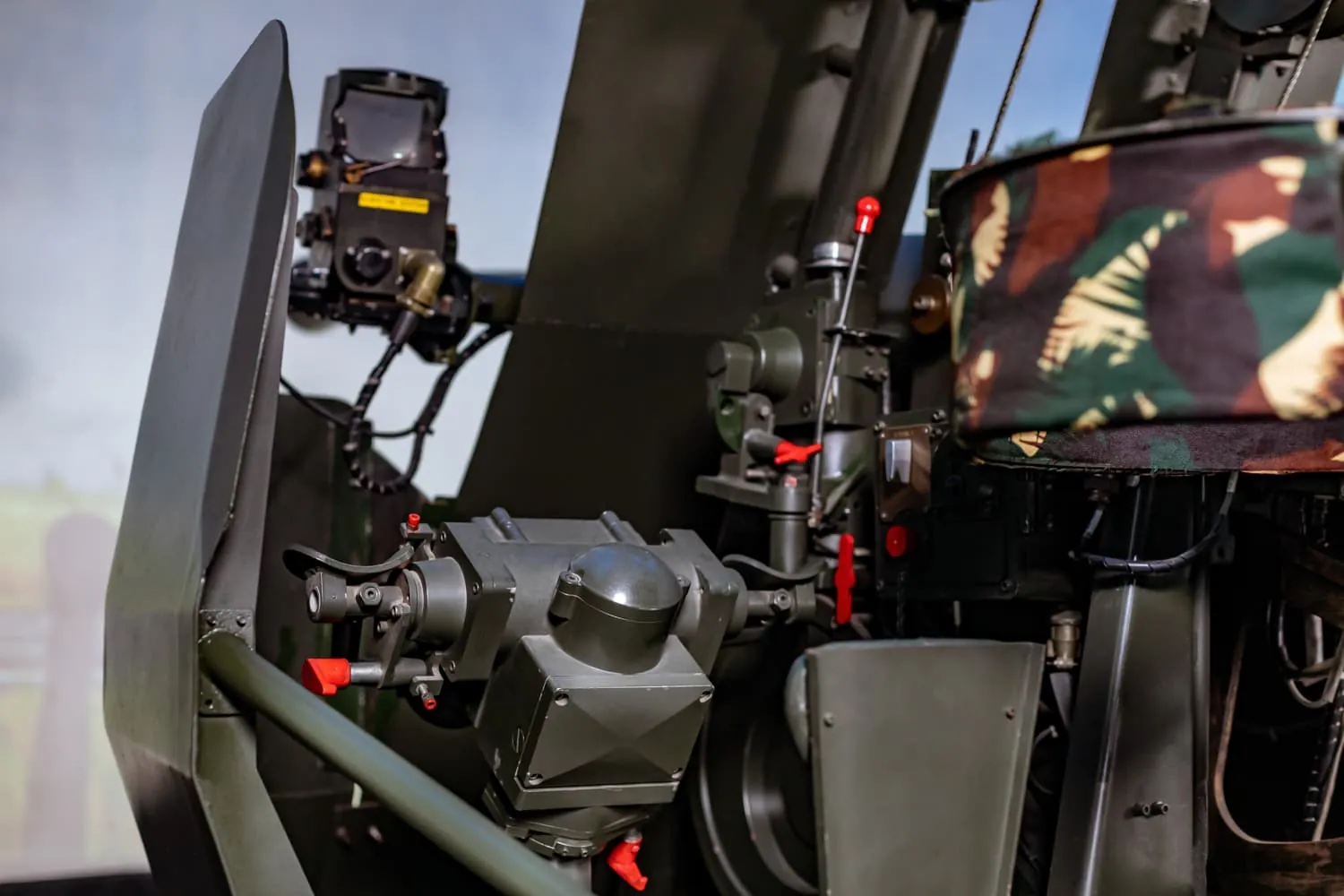

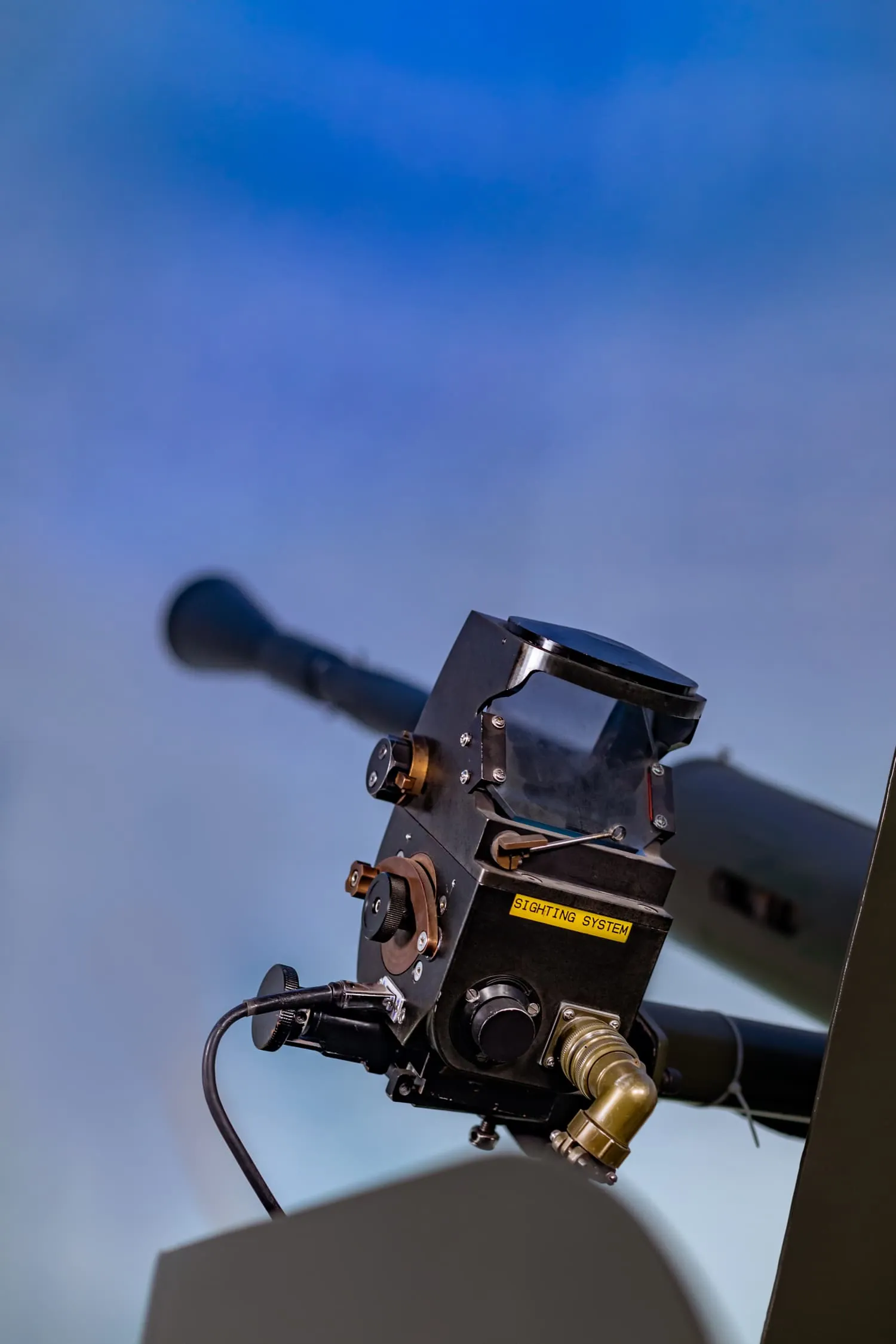

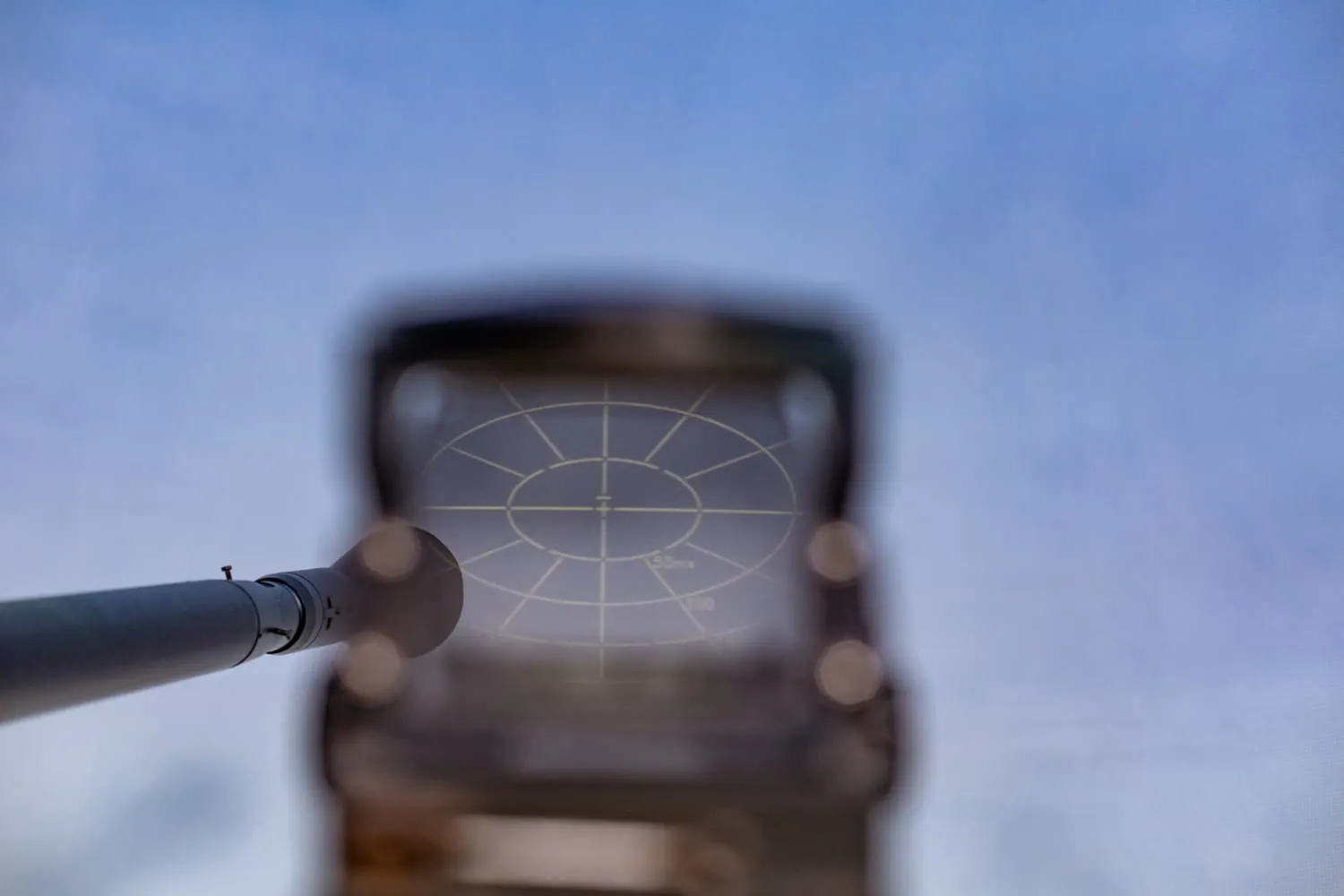

Gun Replica

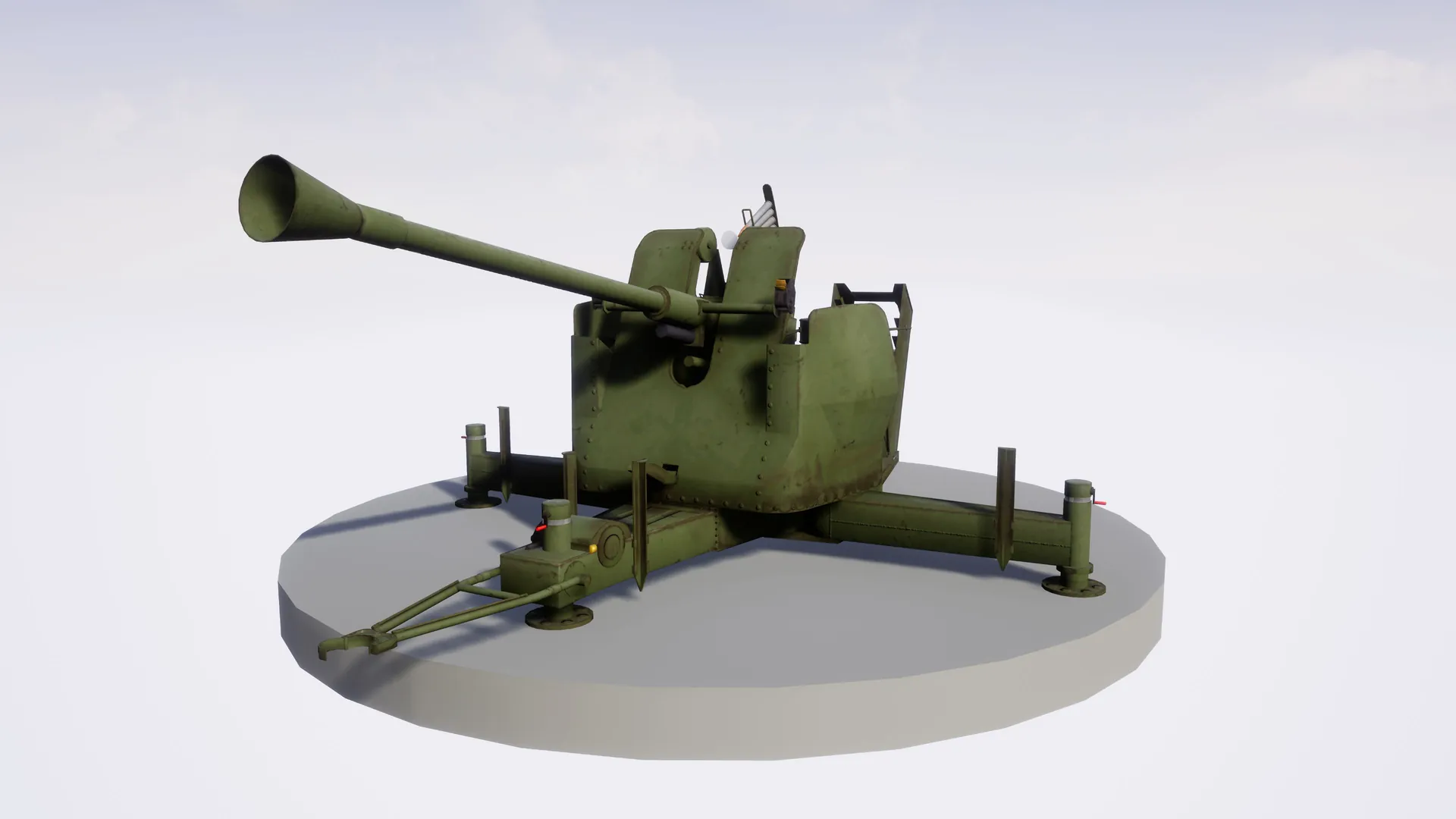

  • This comprises of a replica of the L70, as well as, ZU 23 -2 gun.
  • The replica is so designed as to give a feel of ‘real gun’ to the trainees.

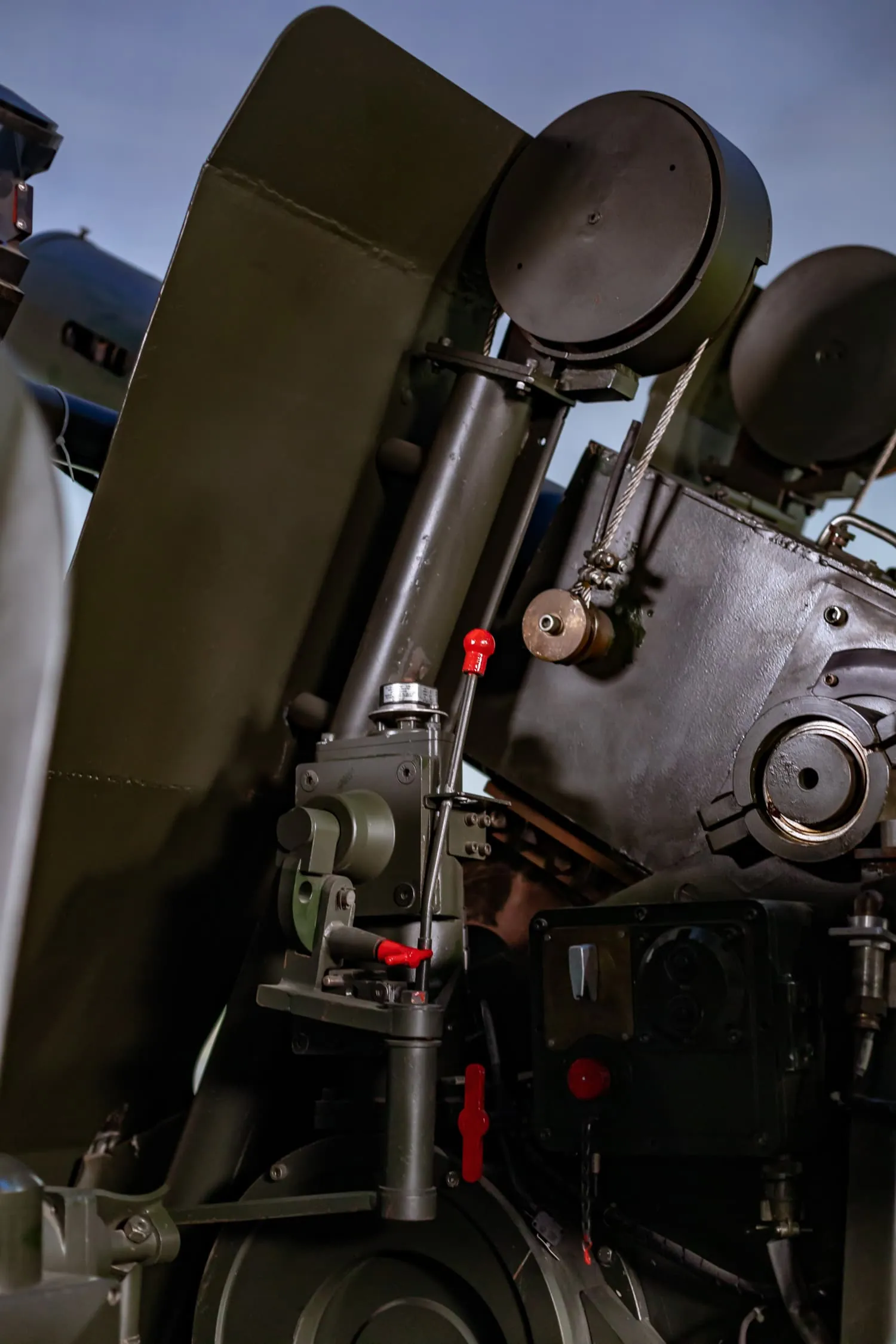

  • All functions like traverse, elevation, lay, fire etc. have been accurately replicated.
  • The replica permits gun-drill and fire-drill as per the actuals.
  • The feel of fire to the crew is akin to firing the original gun at the firing range.
  • Realistic Recoil effect

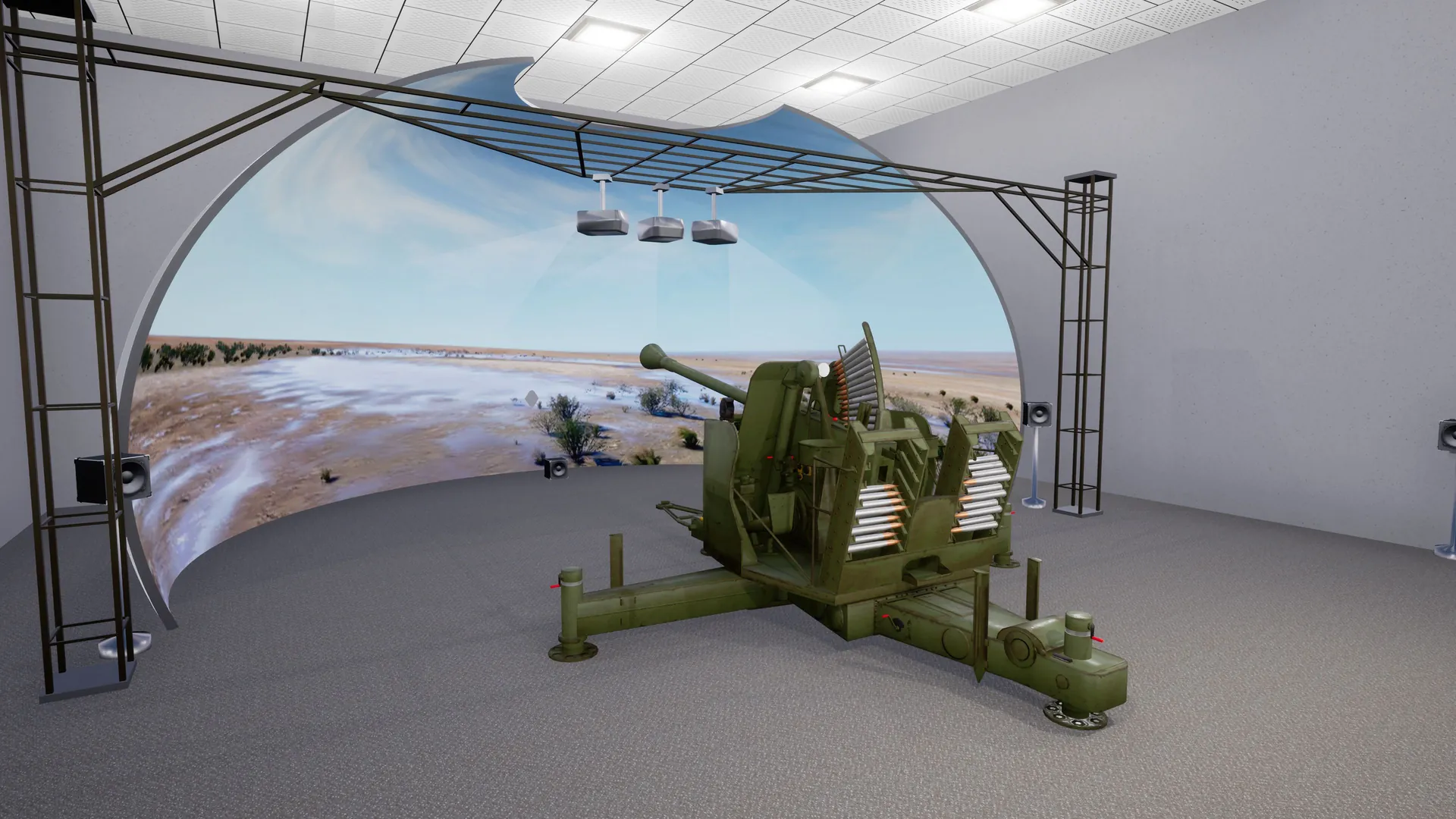

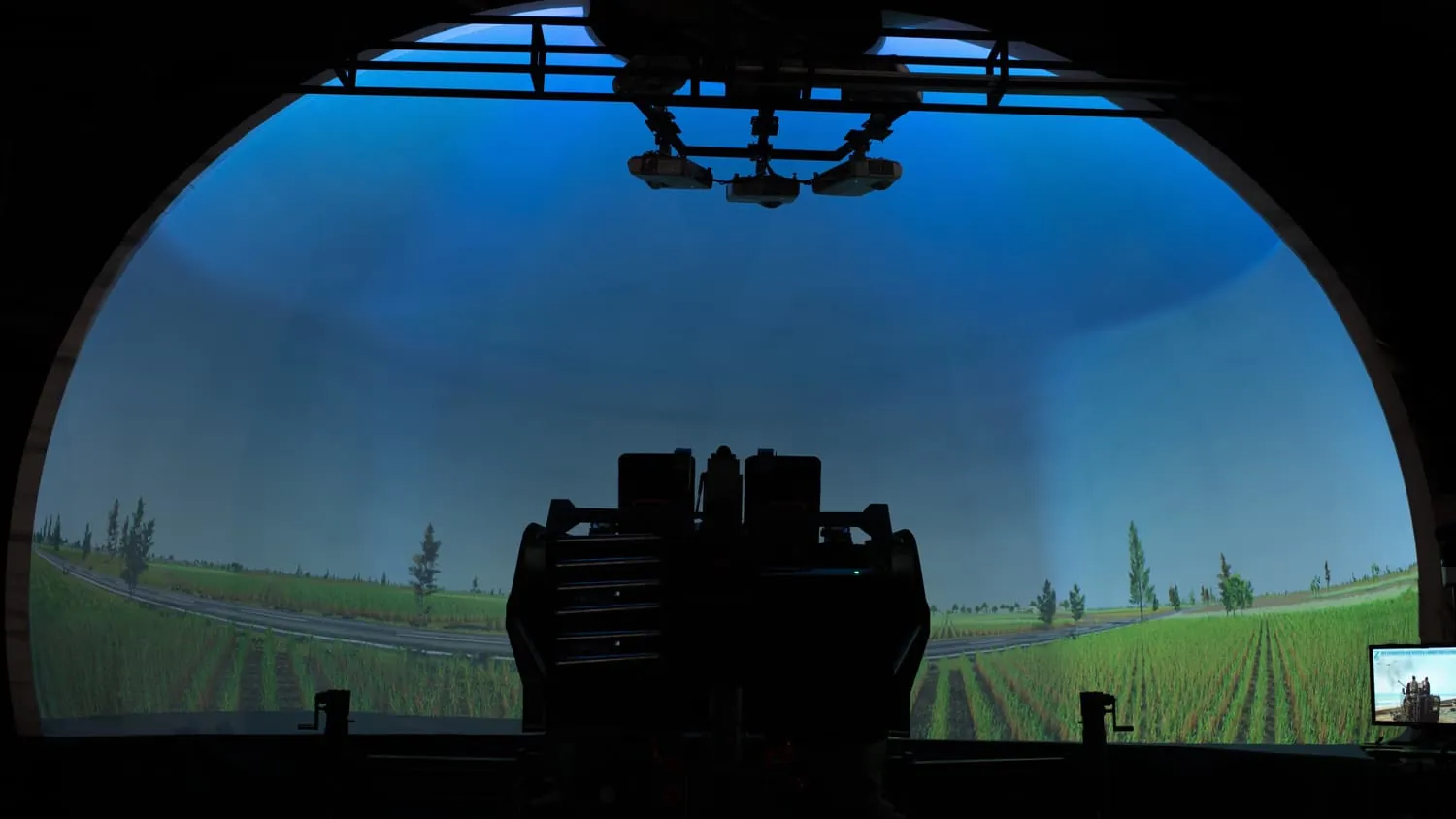

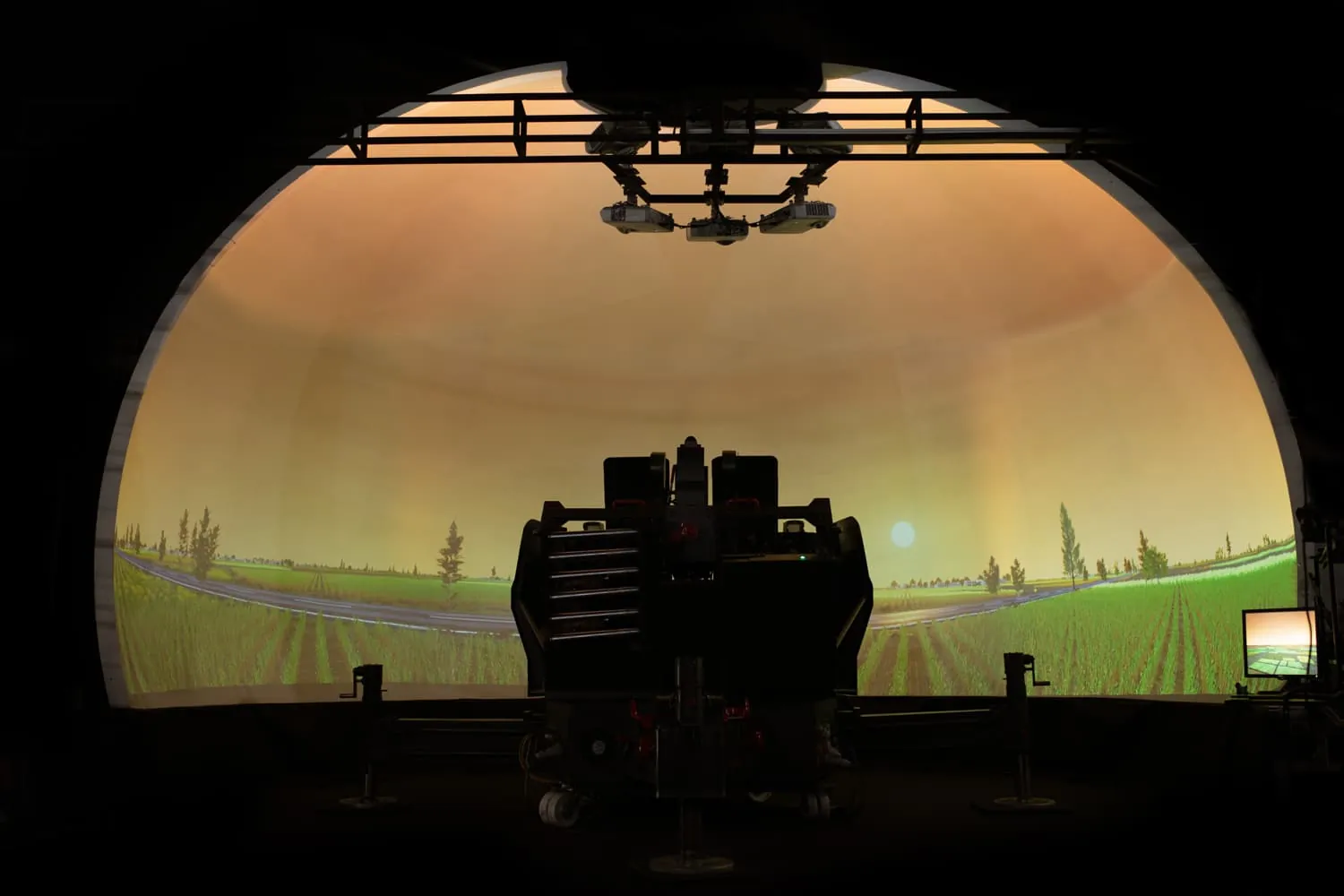

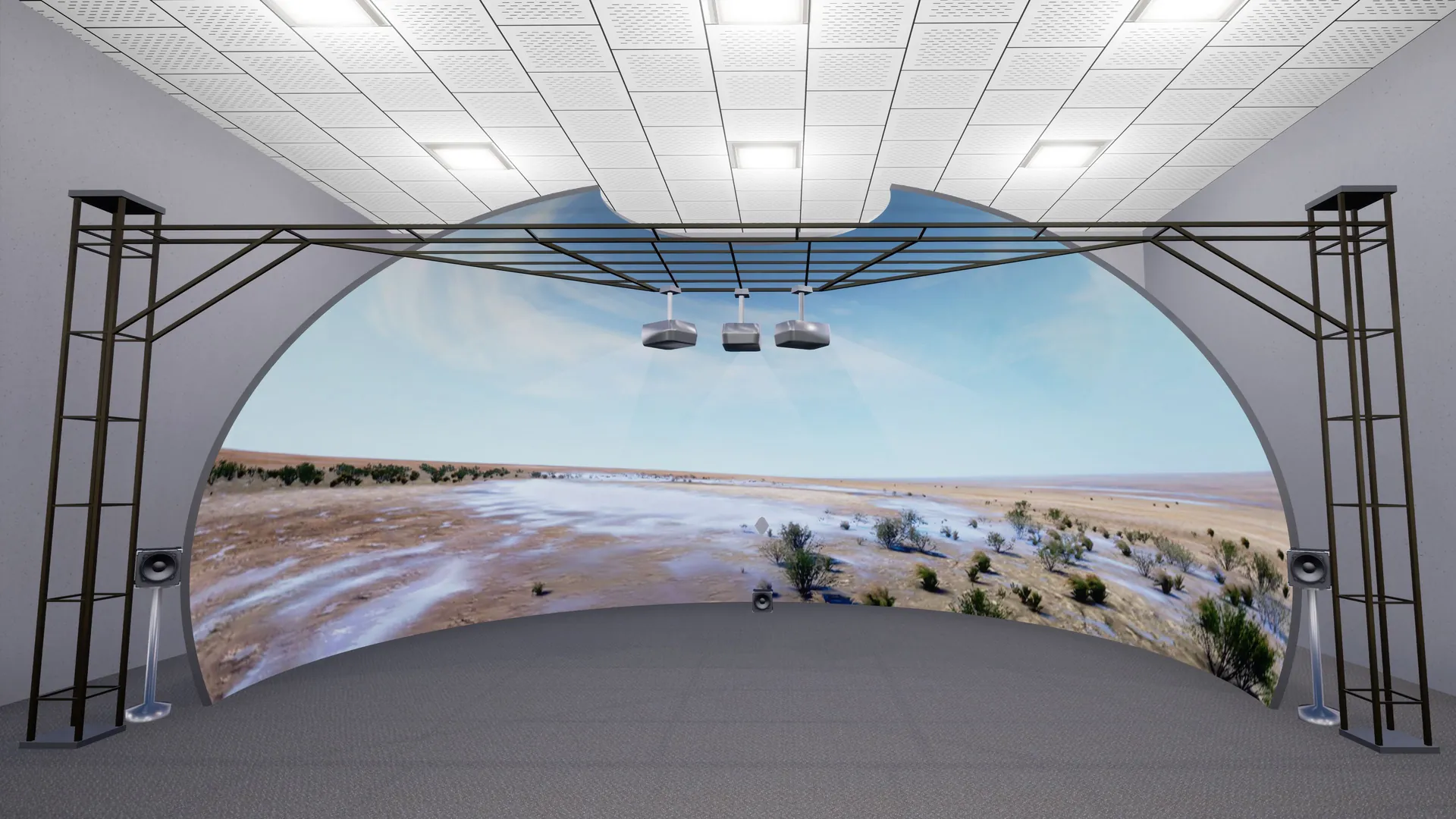

Dome Structure

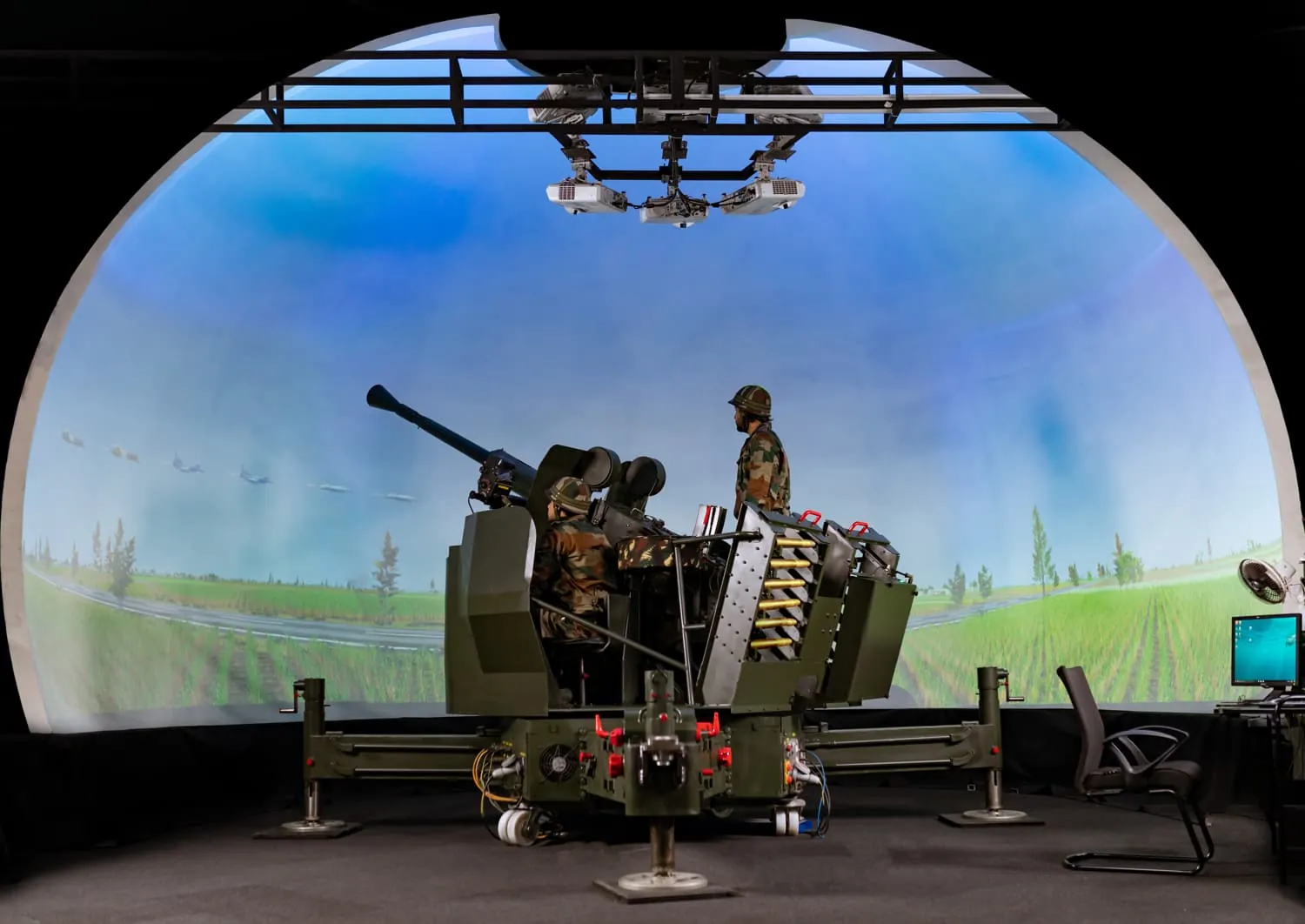

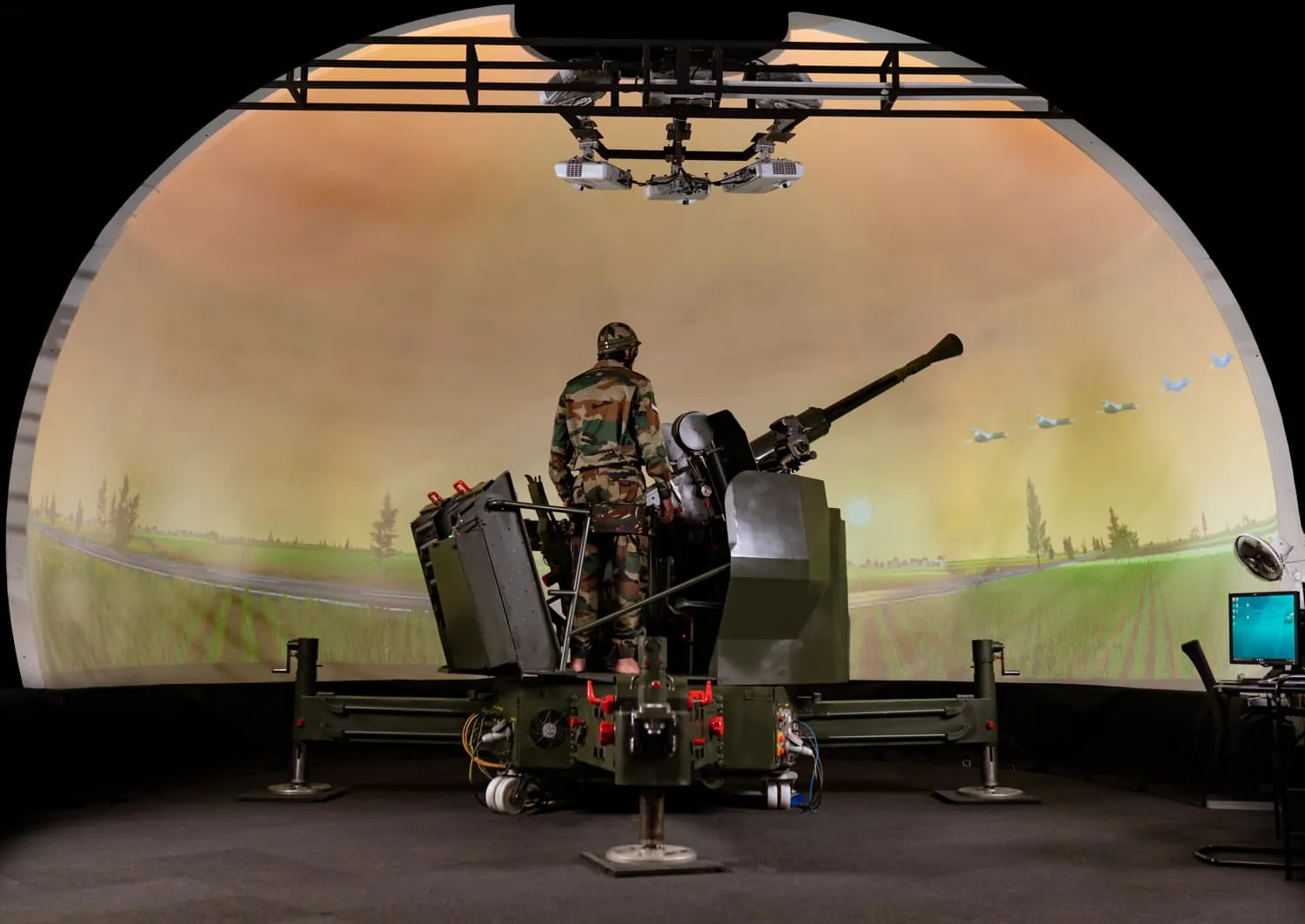

  • The Dome provides a high reflectivity screen with a traverse spread 210 degrees and an elevation pan from -5 to +75 degrees. Seamless 3D terrain views and realistic battle scenarios are presented on the Dome screen using multiple high-resolution projectors.

Sound Simulation System

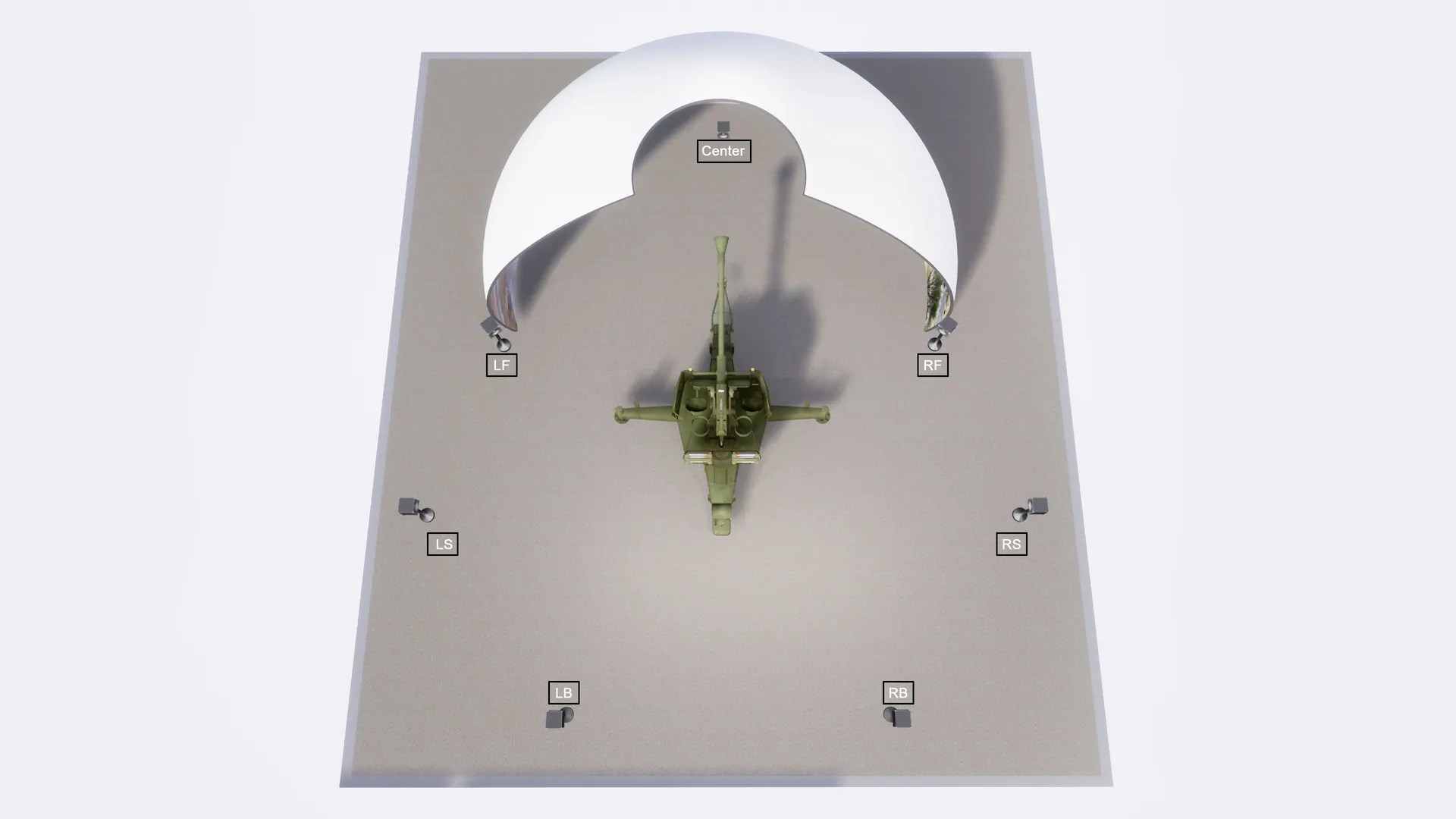

  • A 7.1 Digital Audio system generates high fidelity sound effects relating to multiple battlefield scenarios. Audio and video outputs are perfectly matched to enhance reality.

Instructor Station

  • Configured on three high-end workstations to facilitate planning, conduct and monitoring of training sessions and exercising control on IADCS.
  • The Instructor Station enables many options for the conduct of training, such as the following:-
    • User-defined trainee selection.
    • Multiple options to select terrains and environmental conditions.
    • Deployment options on various types of VAs/
    • Play of air threat by multiple quantum, speeds, altitudes and profiles.
    • Enabling lay and fire drill at LPC by the crew.
    • CRS as a measure of trainee skill.
    • After Action Review for analysis and course correction.

OTHER VARIATIONS OF IADCS

Live Simulation Options:
  • Outdoor Version

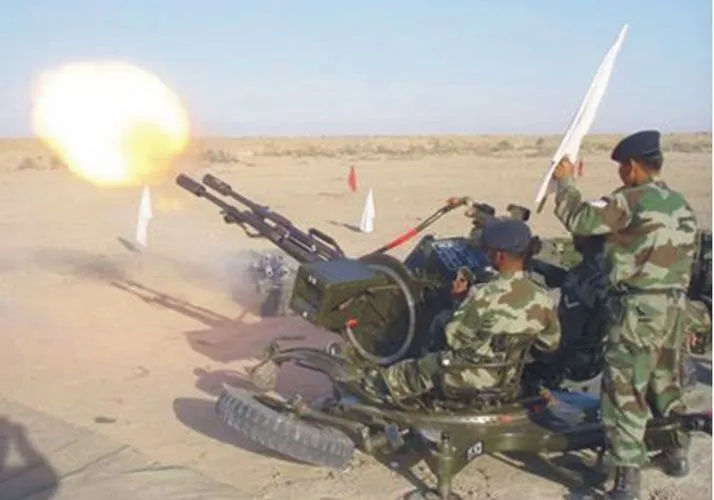

    • Gun replicas are deployed outdoors in the training area.
    • Firing is carried out on regular Pilotless Target Aircraft (PTAs).
    • All other facilities remain the same.
    • Zero ammunition expenditure. Minimal PTA expenditure.

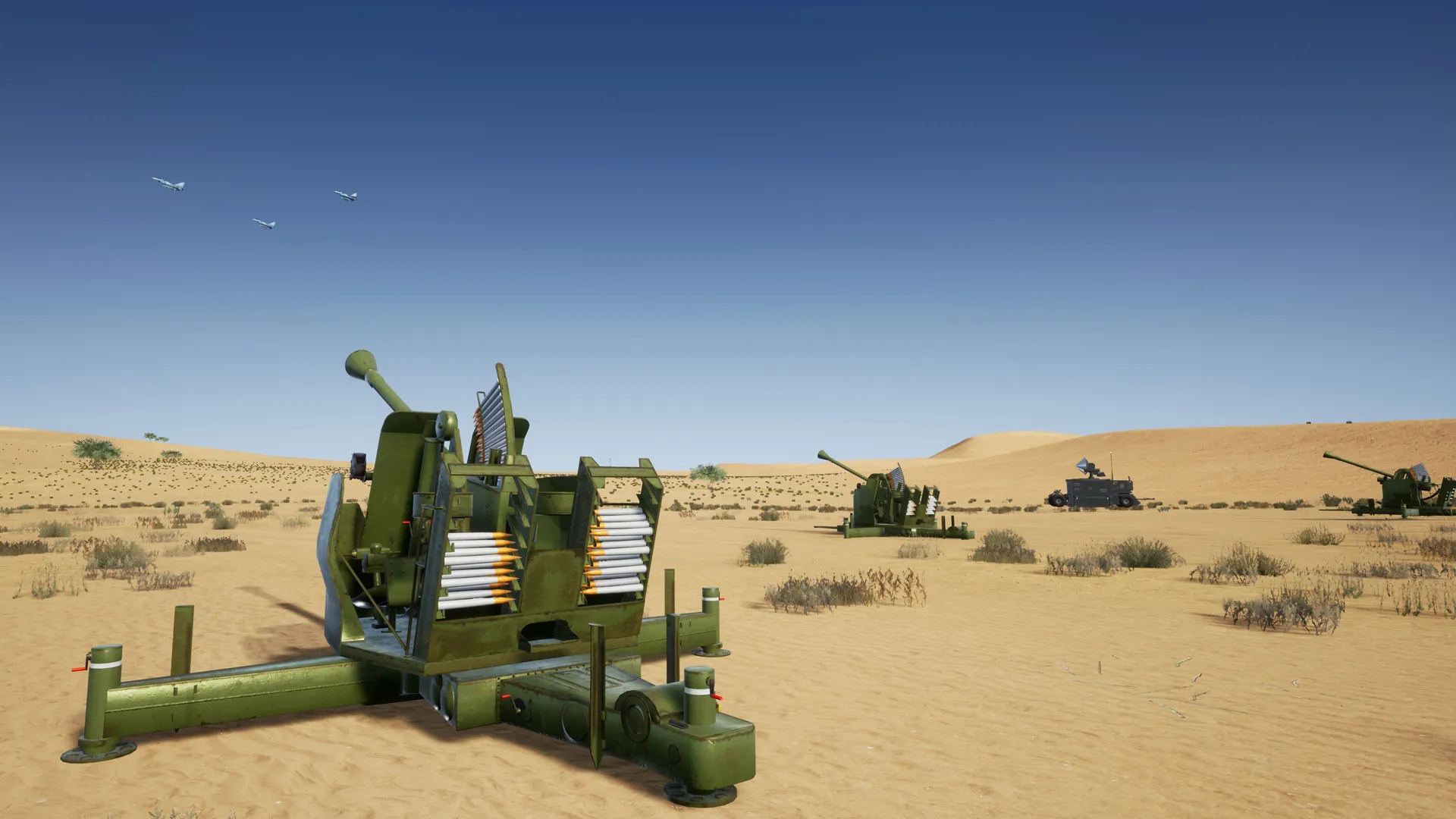

  • Radar Version
    • Besides gun replicas, the IADCS also features radar replicas.
    • These could be fire control radars like Flycatcher or USFM.
    • Mode of firing is Remote Power Control, conducted outdoors.
    • Zero ammunition expenditure. Minimal PTA expenditure.

NOT ONLY ON L 70 AND ZU 23 GUNS, IADCS CAN BE ADAPTED TO ANY AIR DEFENCE GUN AND ANY FIRE CONTROL RADAR
