Smart Target System (ZEN STS®) - LOMAH

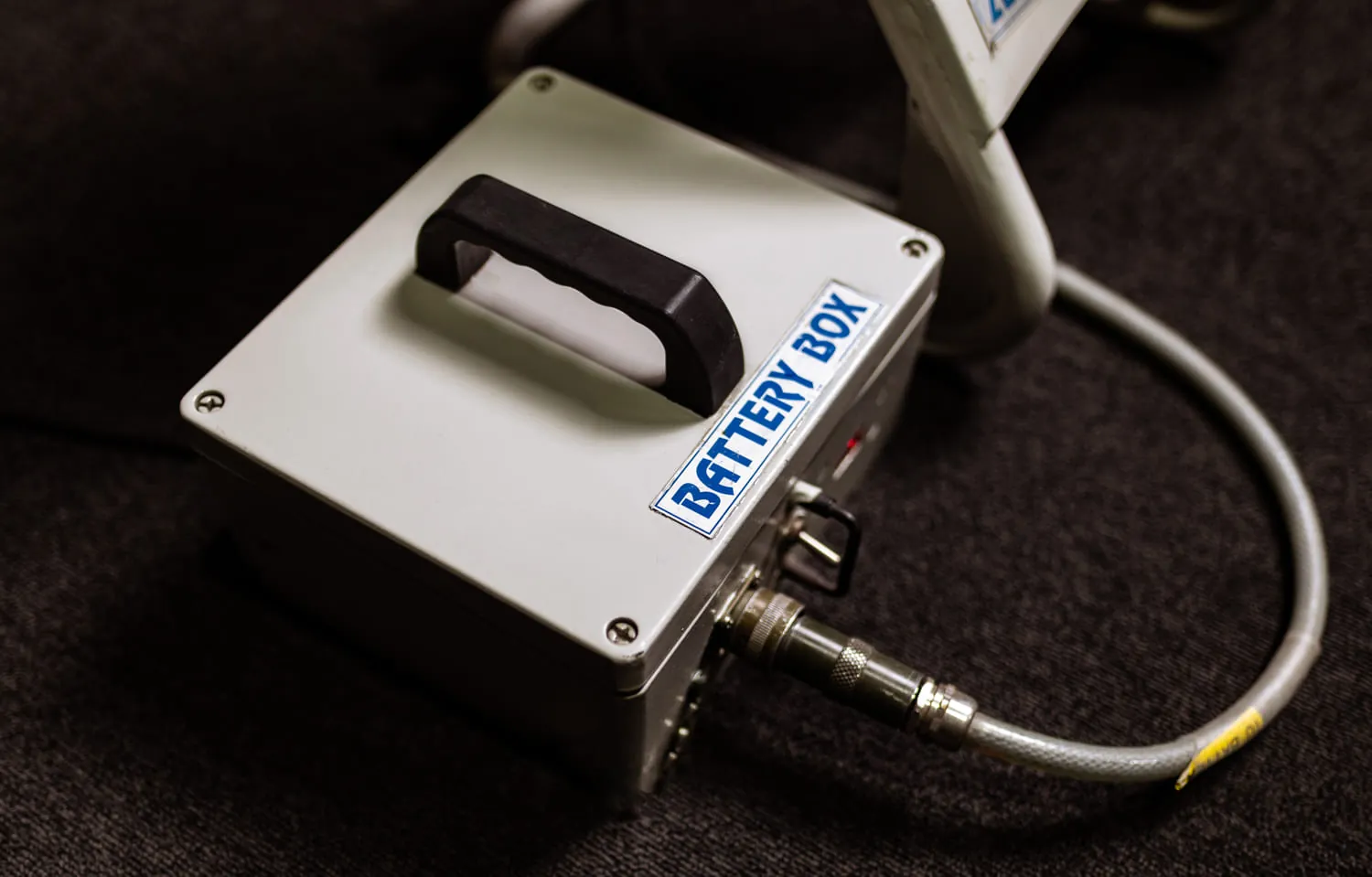

Zen Smart Target System (LOMAH) is an electro-mechanical, software-driven, acoustical projectile detection and reporting system designed to be used at outdoor ranges for live Small Arms firing. The equipment is rugged, light-weight, easy to assemble and operate. It is available in wired and wireless configurations. The system can be operated with 230V AC 50 Hz or with DC battery power.

Actions associated with day and night firing, such as, time taken for erecting targets, physical movement to check results and repair the targets, crossfire and safety-related issues, are all addressed by ZEN STS.

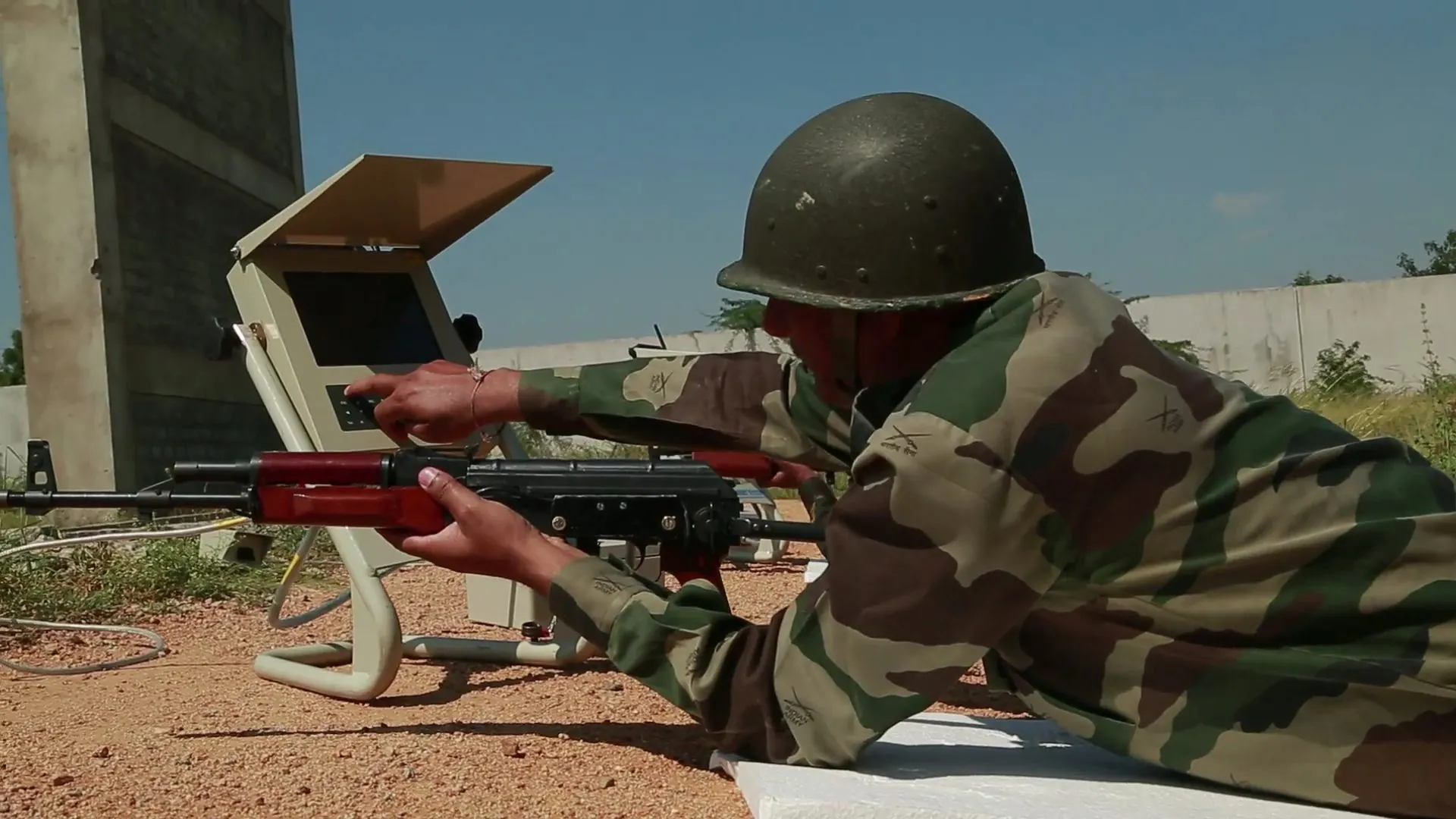

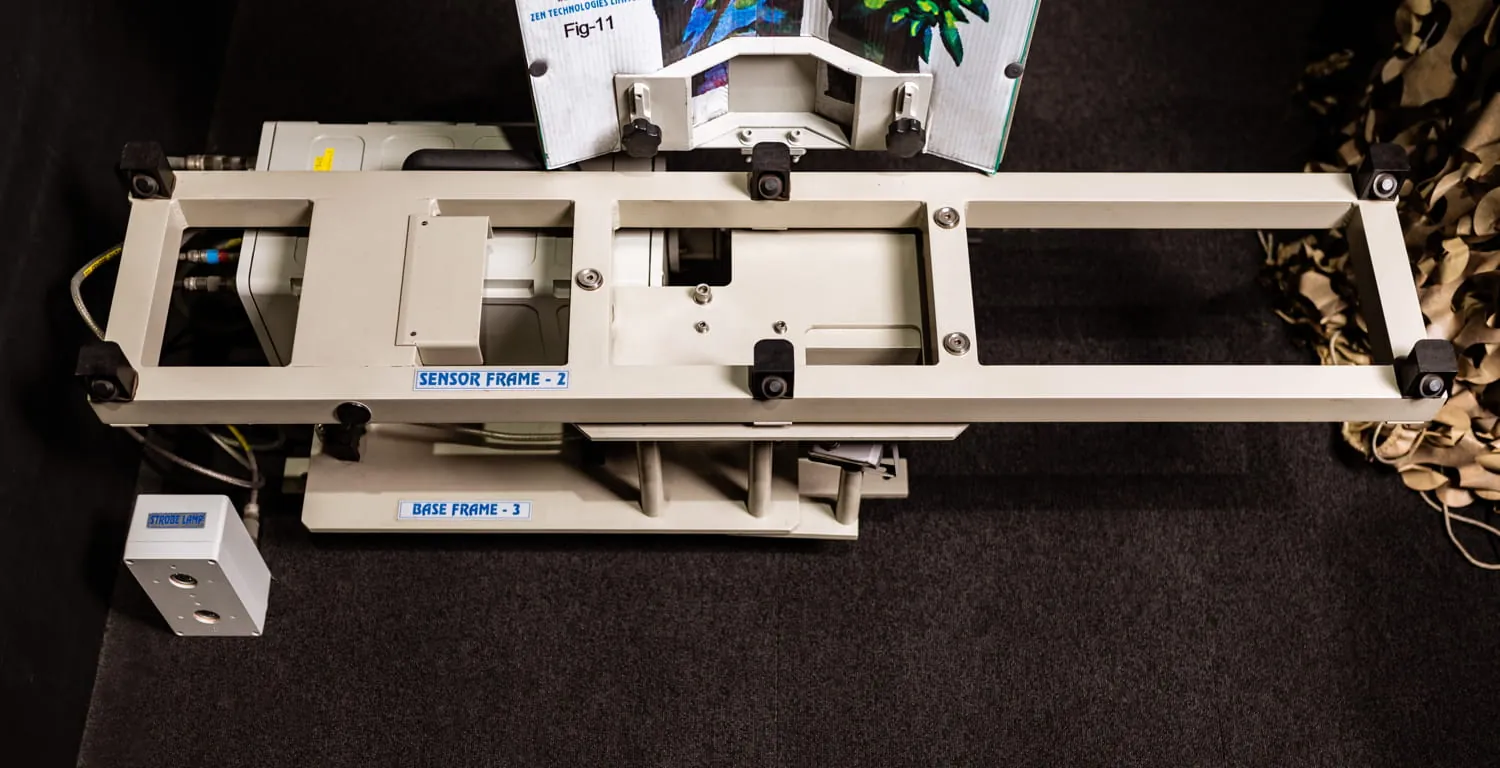

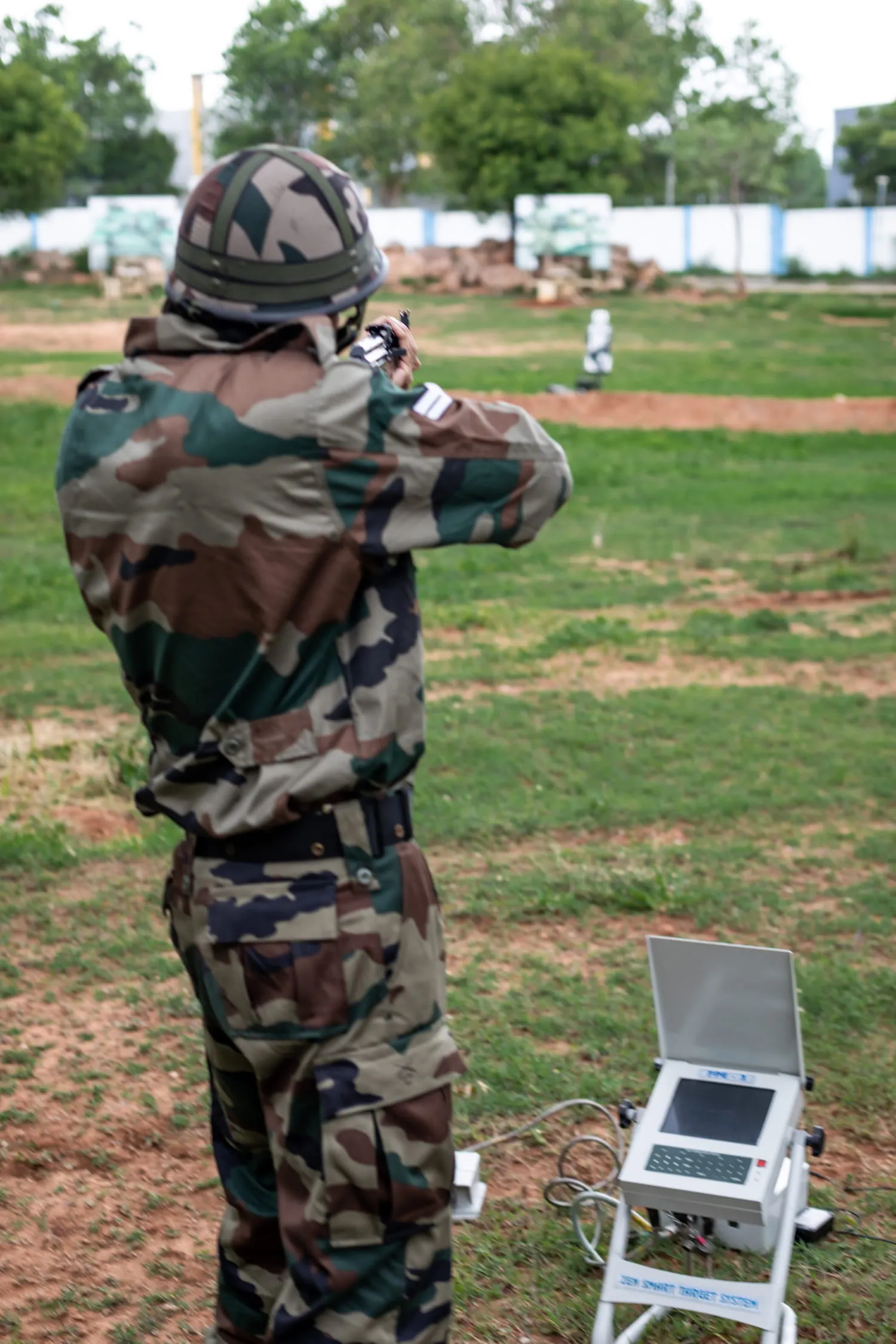

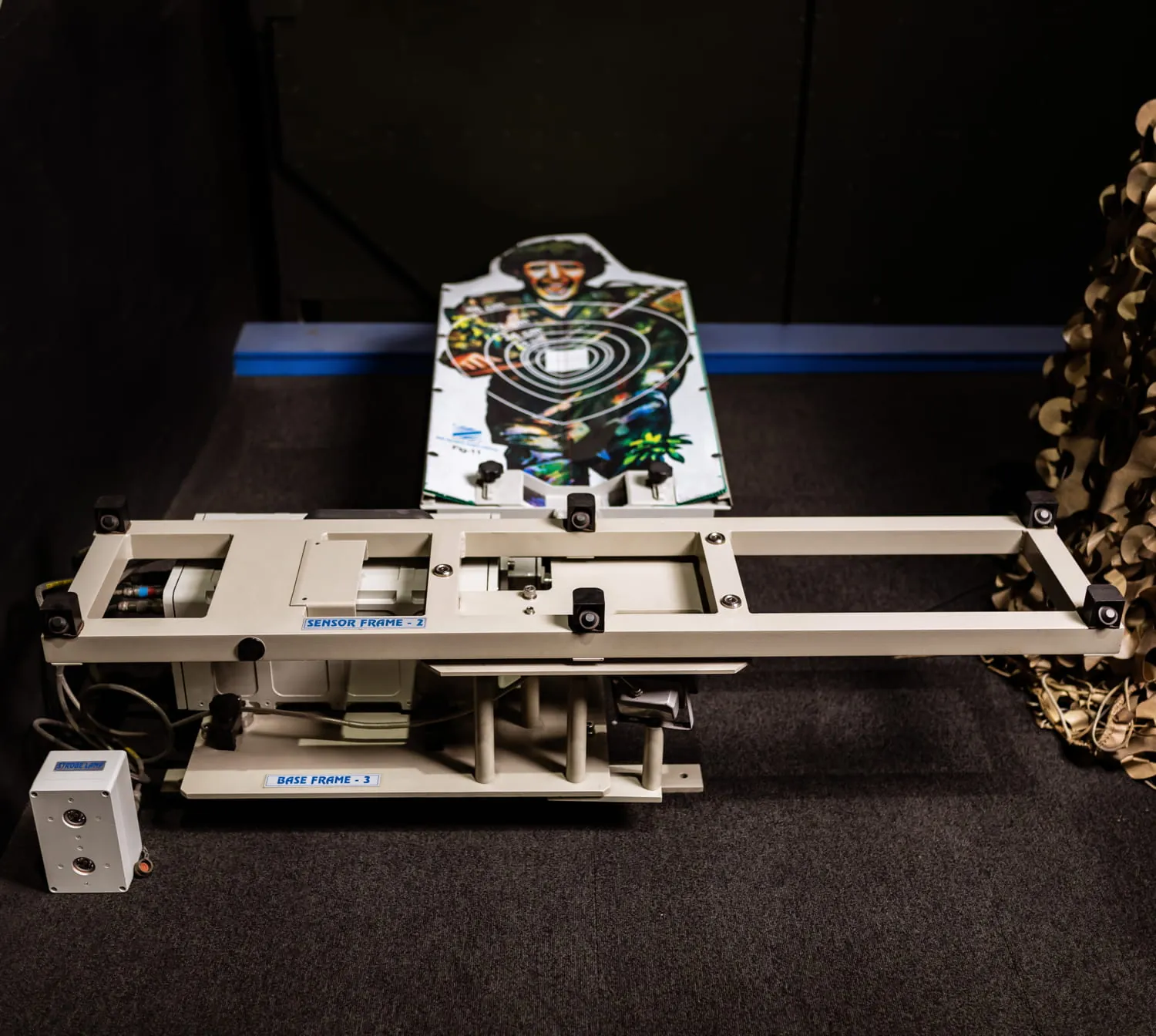

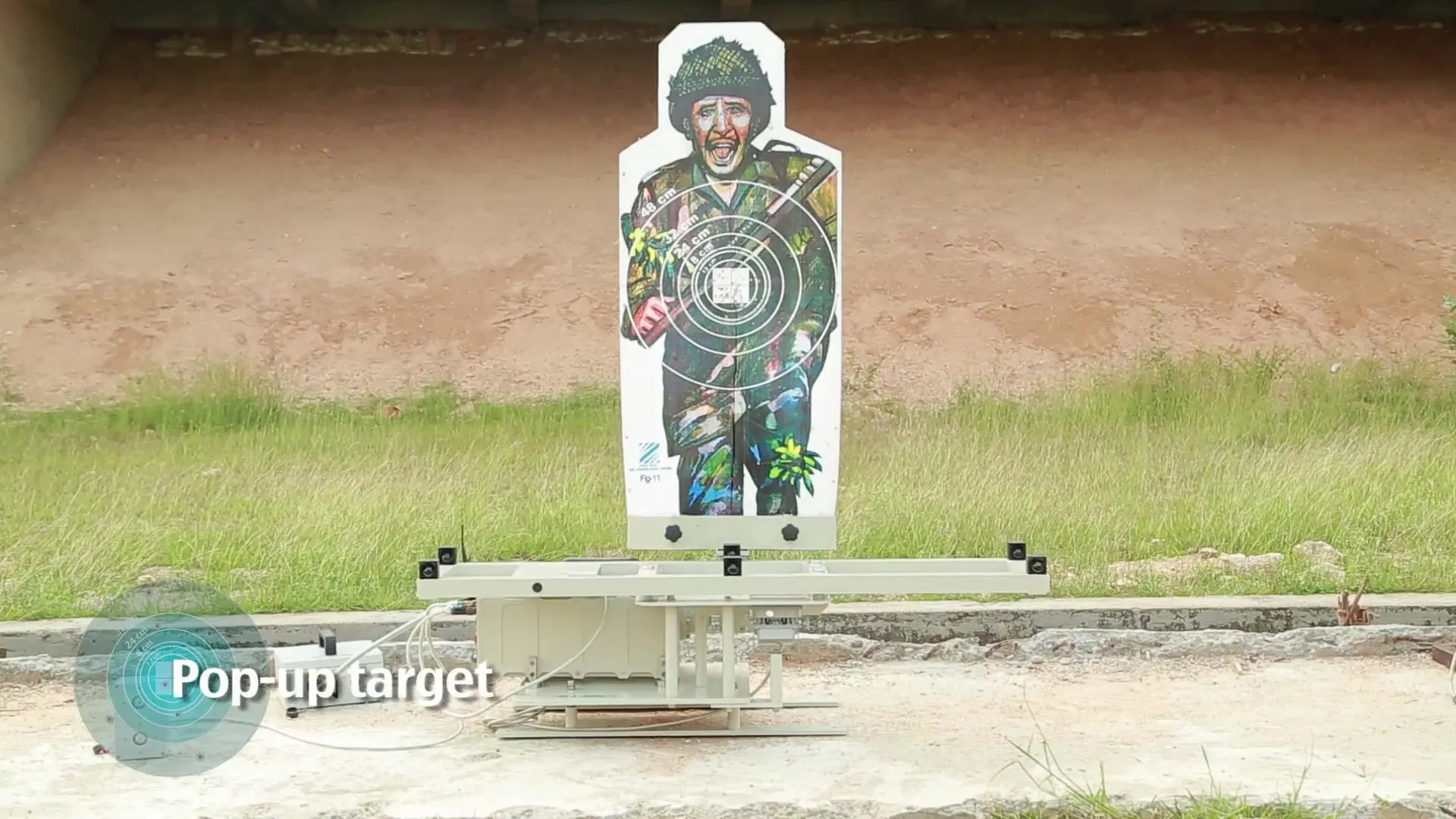

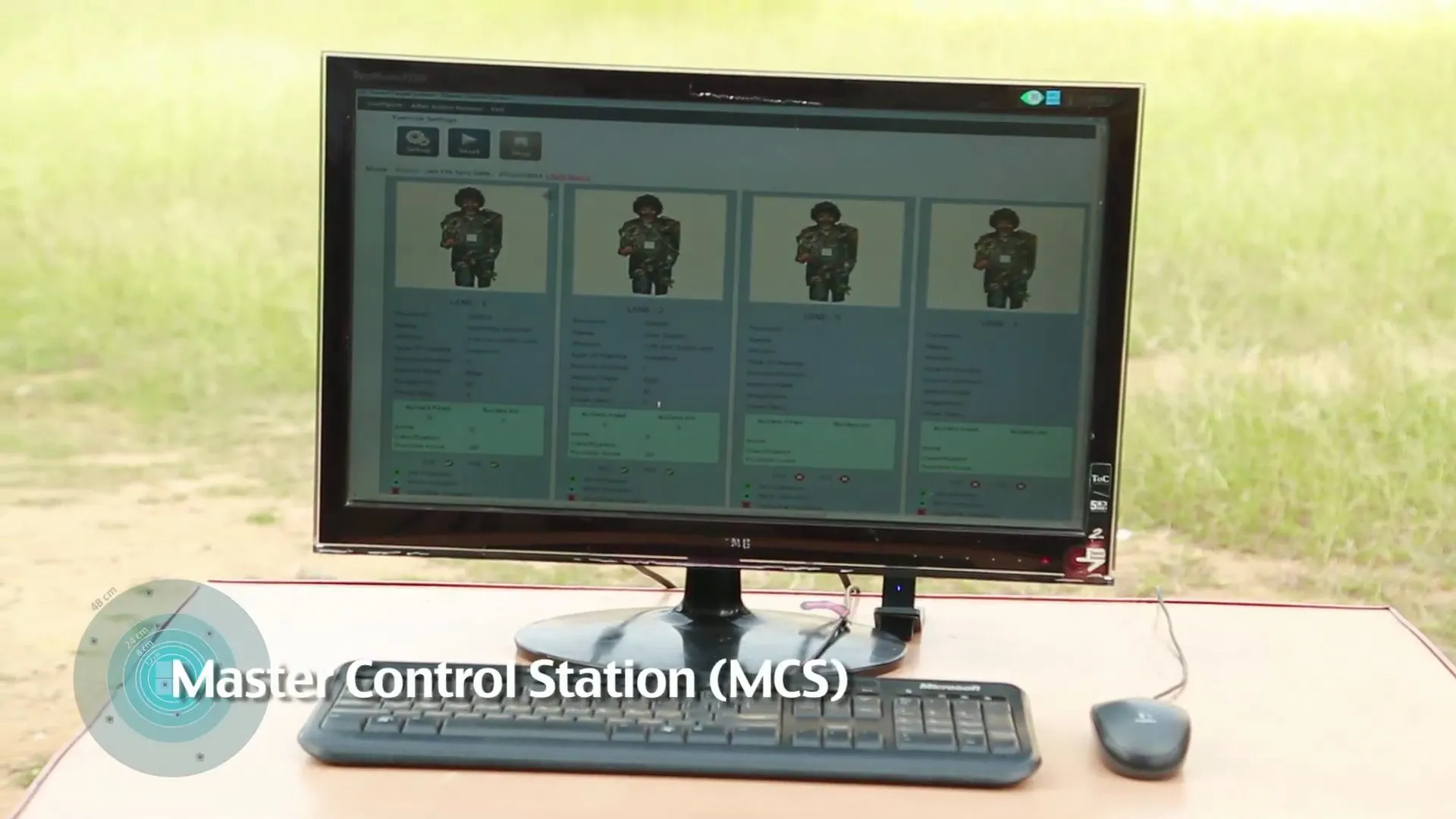

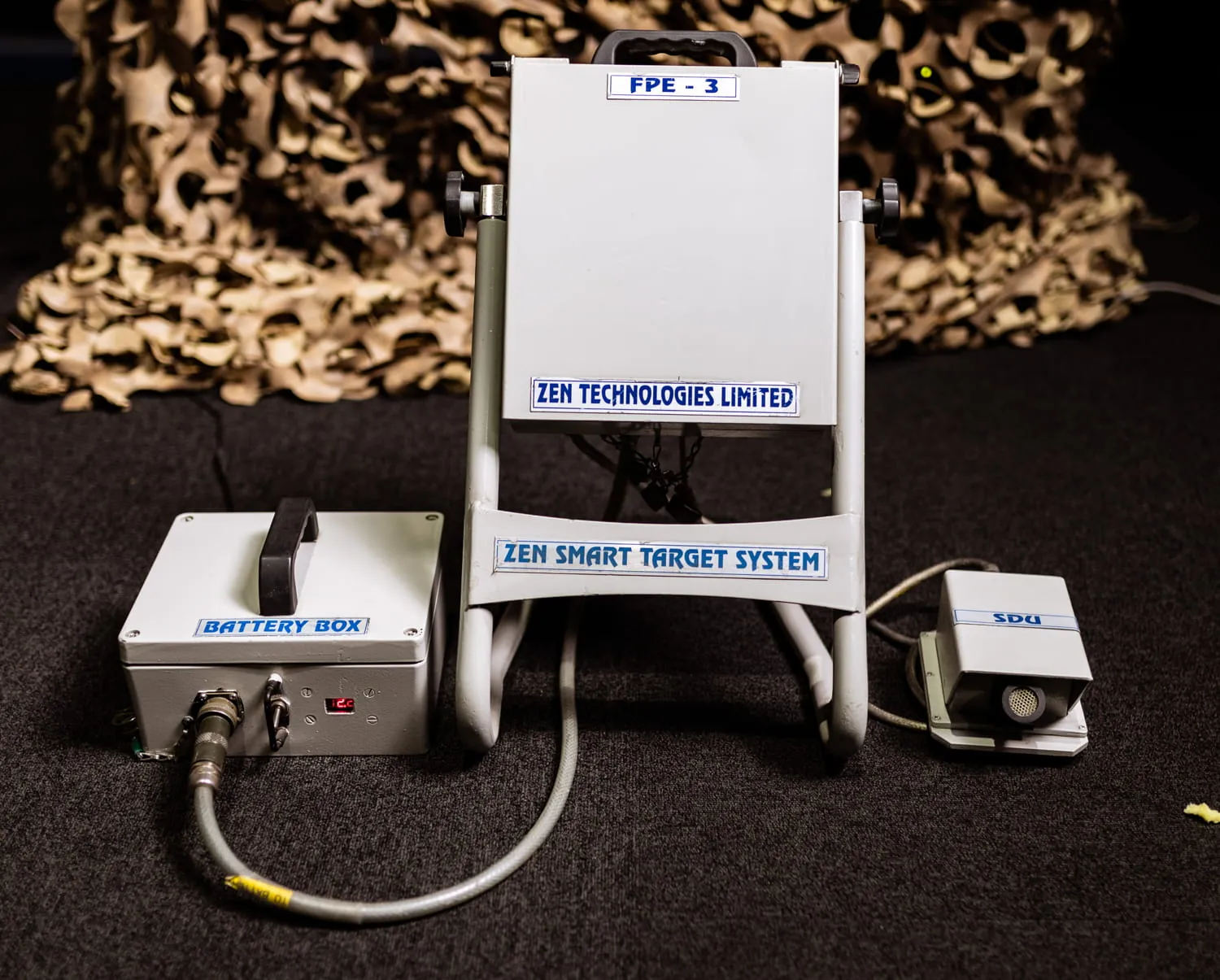

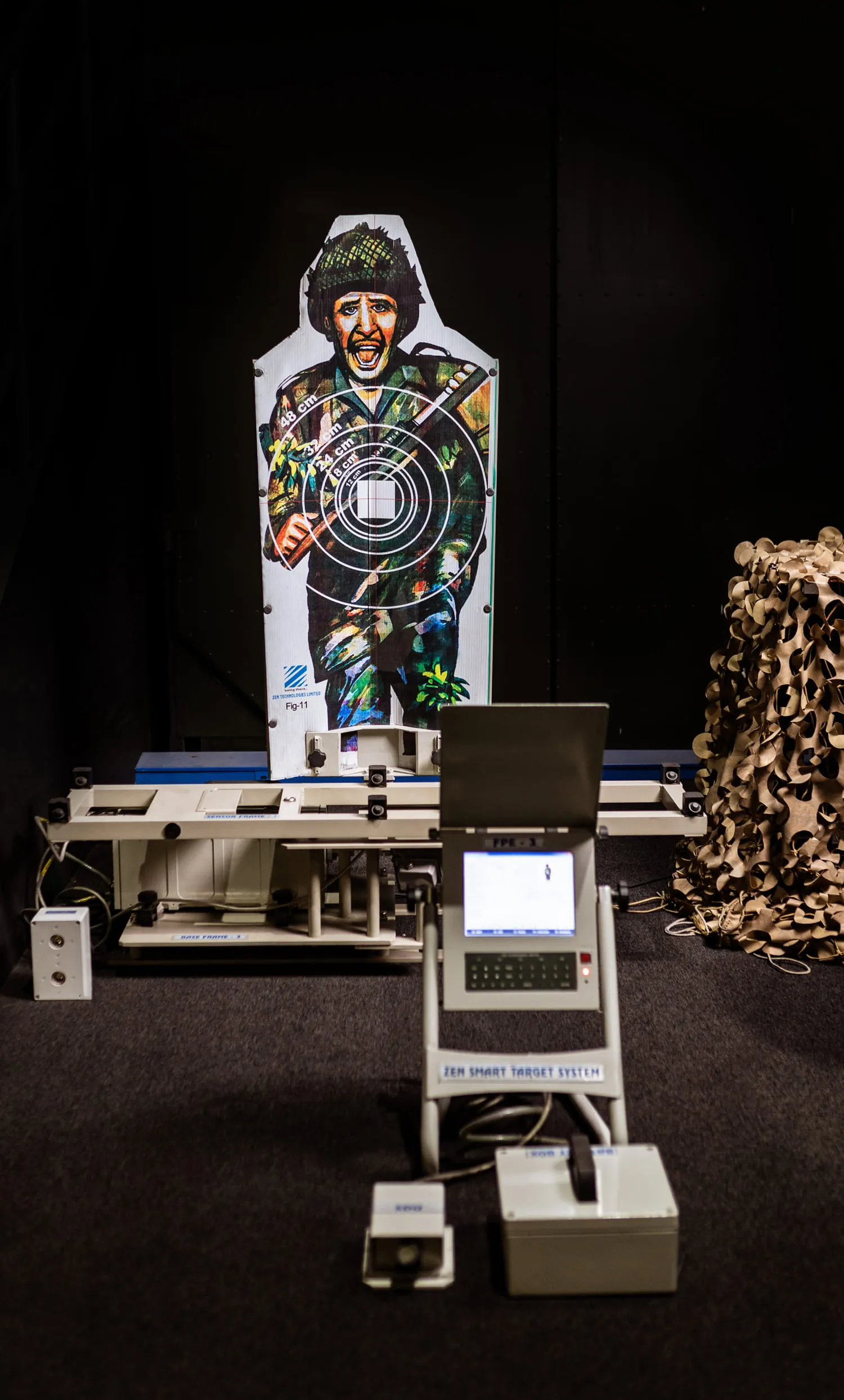

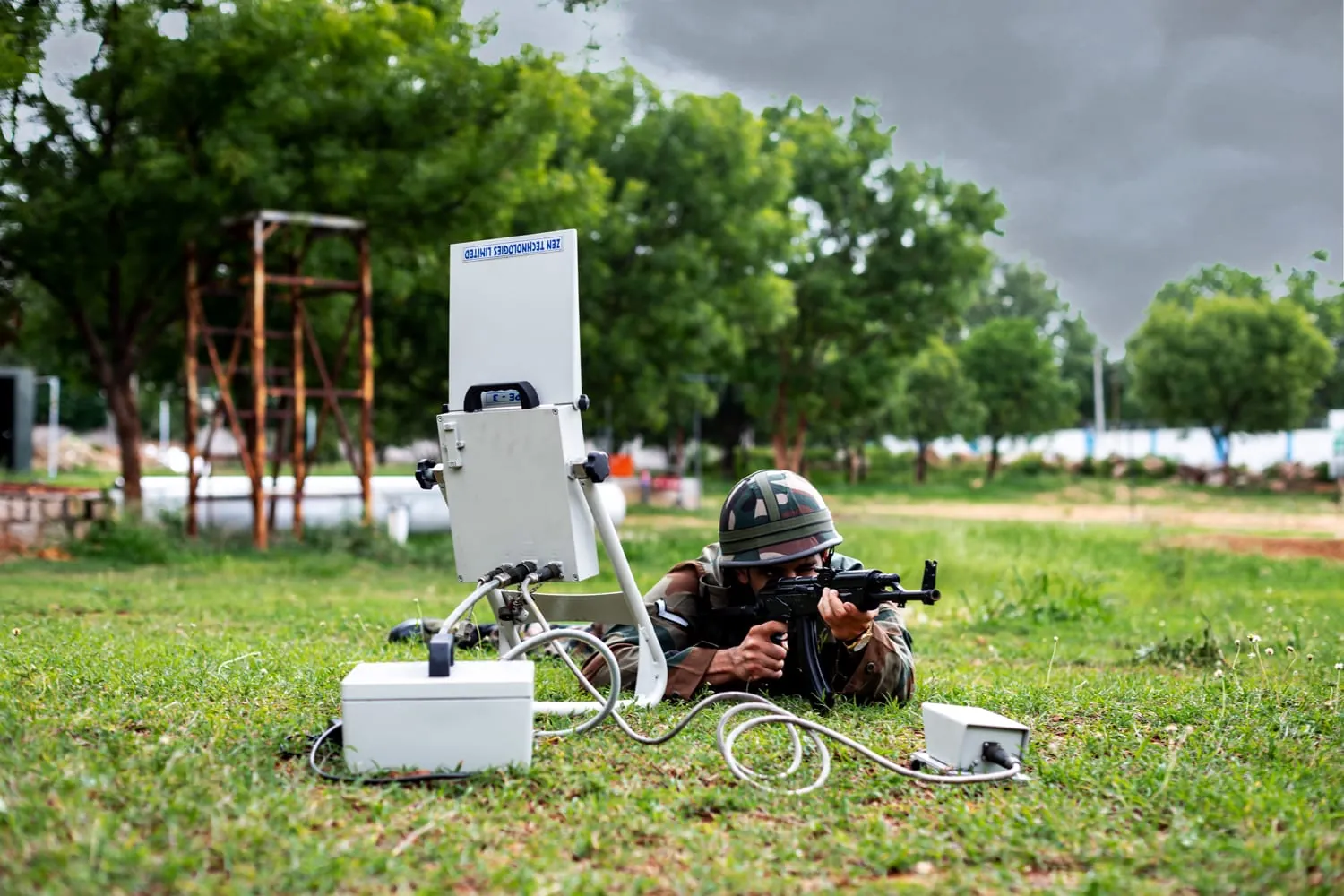

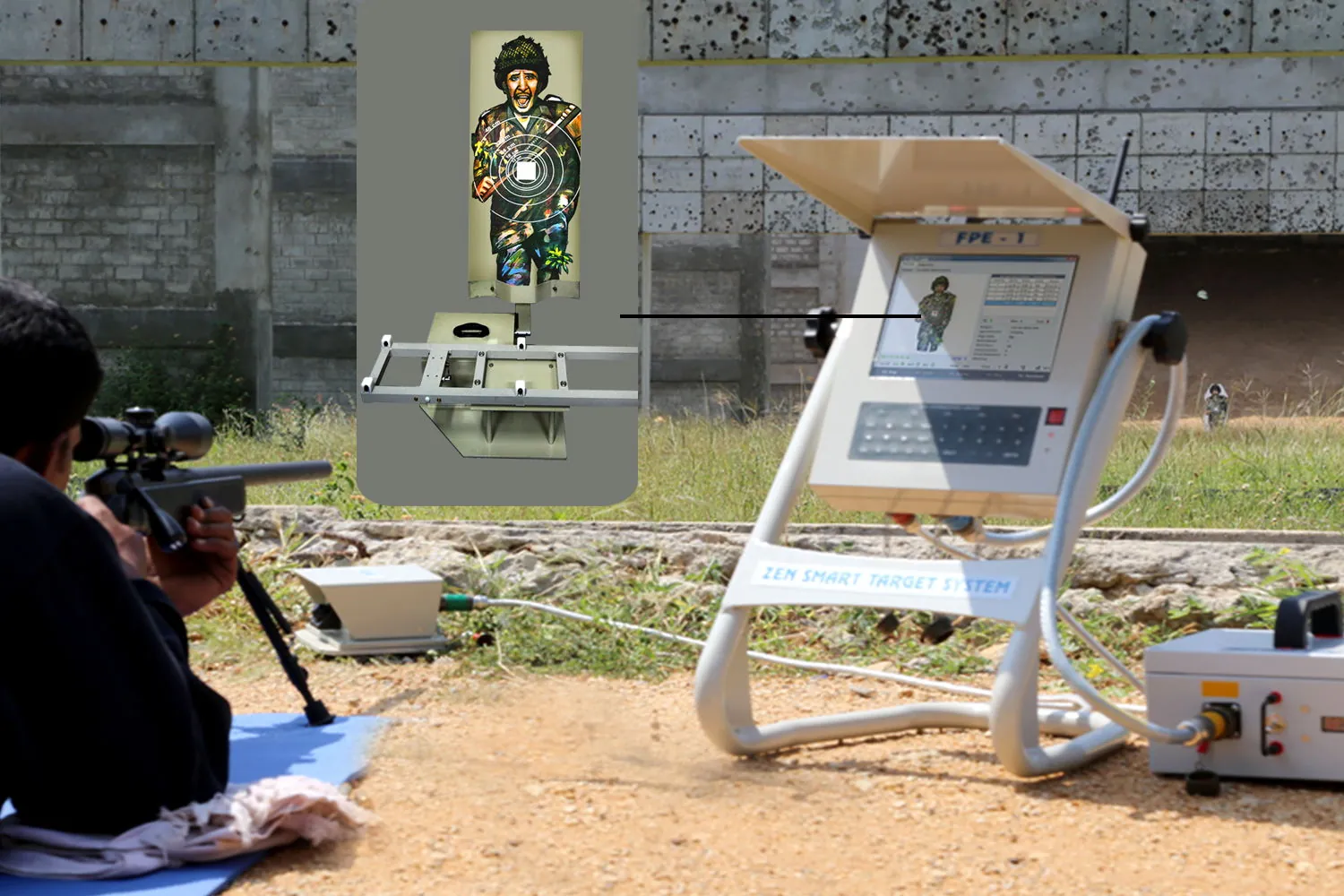

LOMAH consists of a Pop-up Target (PT) with acoustical sensors mounted on a frame at the Target End, Firing Point Equipment (FPE) for individual lanes at the Firer's End for instant display of location of bullet hit and a central Master Control Station (MCS) to monitor and record the results of all firing lanes.

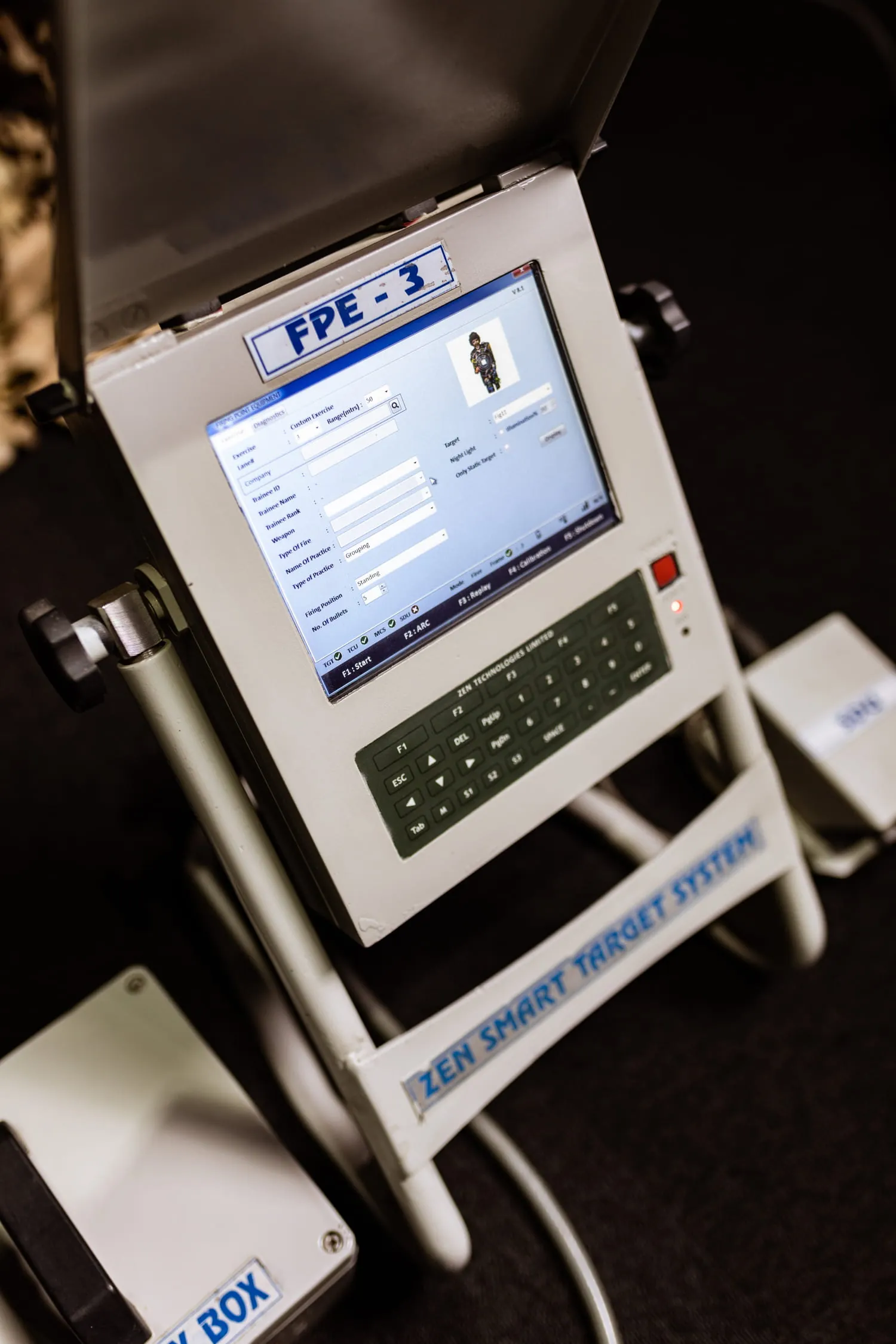

FPE displays and records the shot location on the target and miss location within the detection zone, number of shots fired, type of exercise in progress, the size of the group of bullets, the score, rating and the lane operation status. These features help impart real-time instructional and corrective measures to the firers.

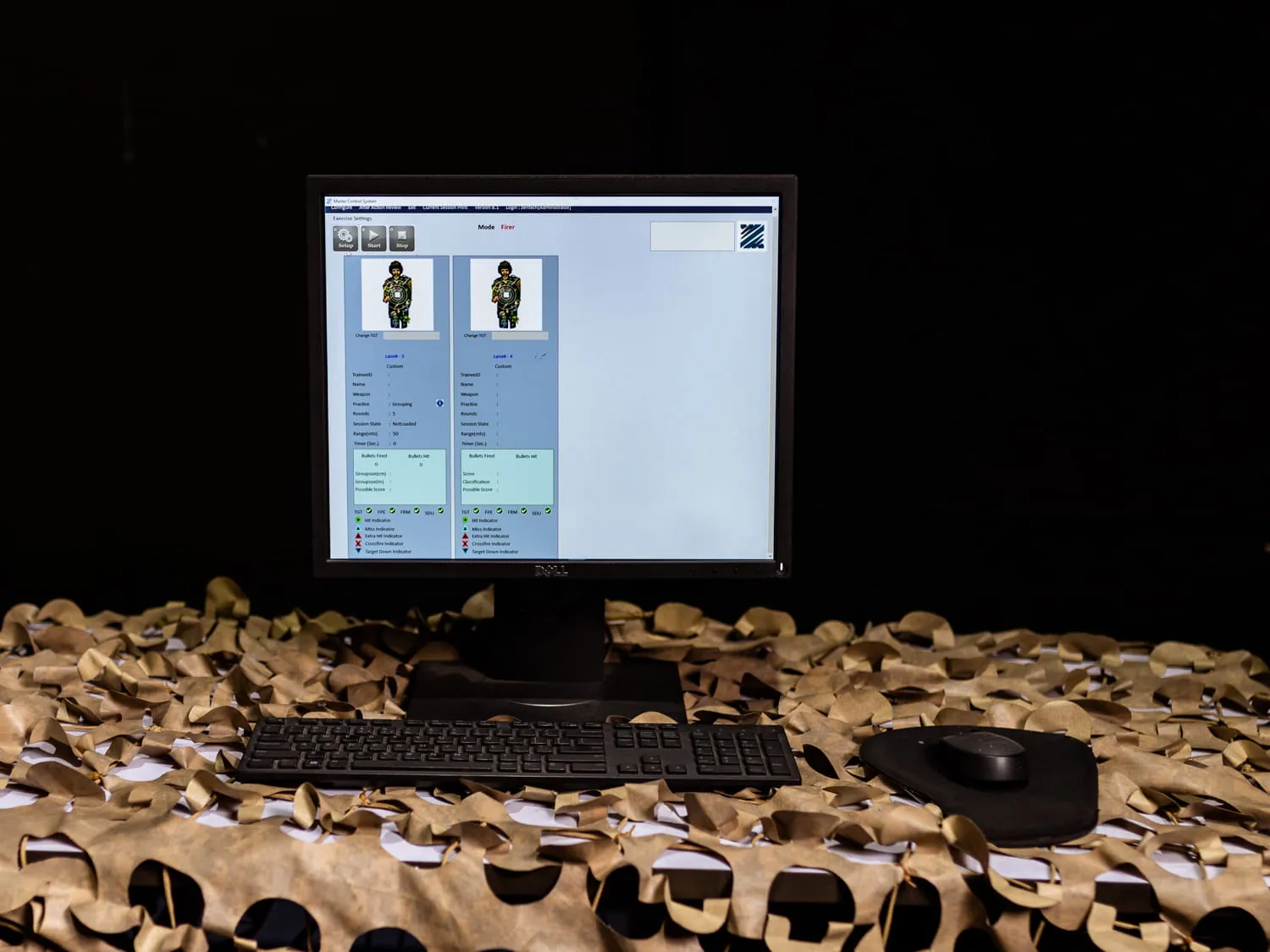

The immediate recording of results in the MCS database can be accessed at any time later thus eliminating the time consuming and laborious process of manually recording details. The firing exercises and exposure time of the targets can be set from FPE as well as MCS.

LOMAH System

It is a Location of Miss and Hit (LOMAH) system

LOMAH Key Features:

  • Shows shot location on the target and miss location within the detection zone
  • Displays the group size and Mean Point of Impact for accurate zeroing of weapons
  • Indicates the lane operation status and allows the control operator to adjust the target exposure time between two and six seconds. Target can be operated in static or up-hold mode
  • Records single shot slow fire, single shot rapid fire and fully automatic fire
  • Allows independent operation of each lane without MCS

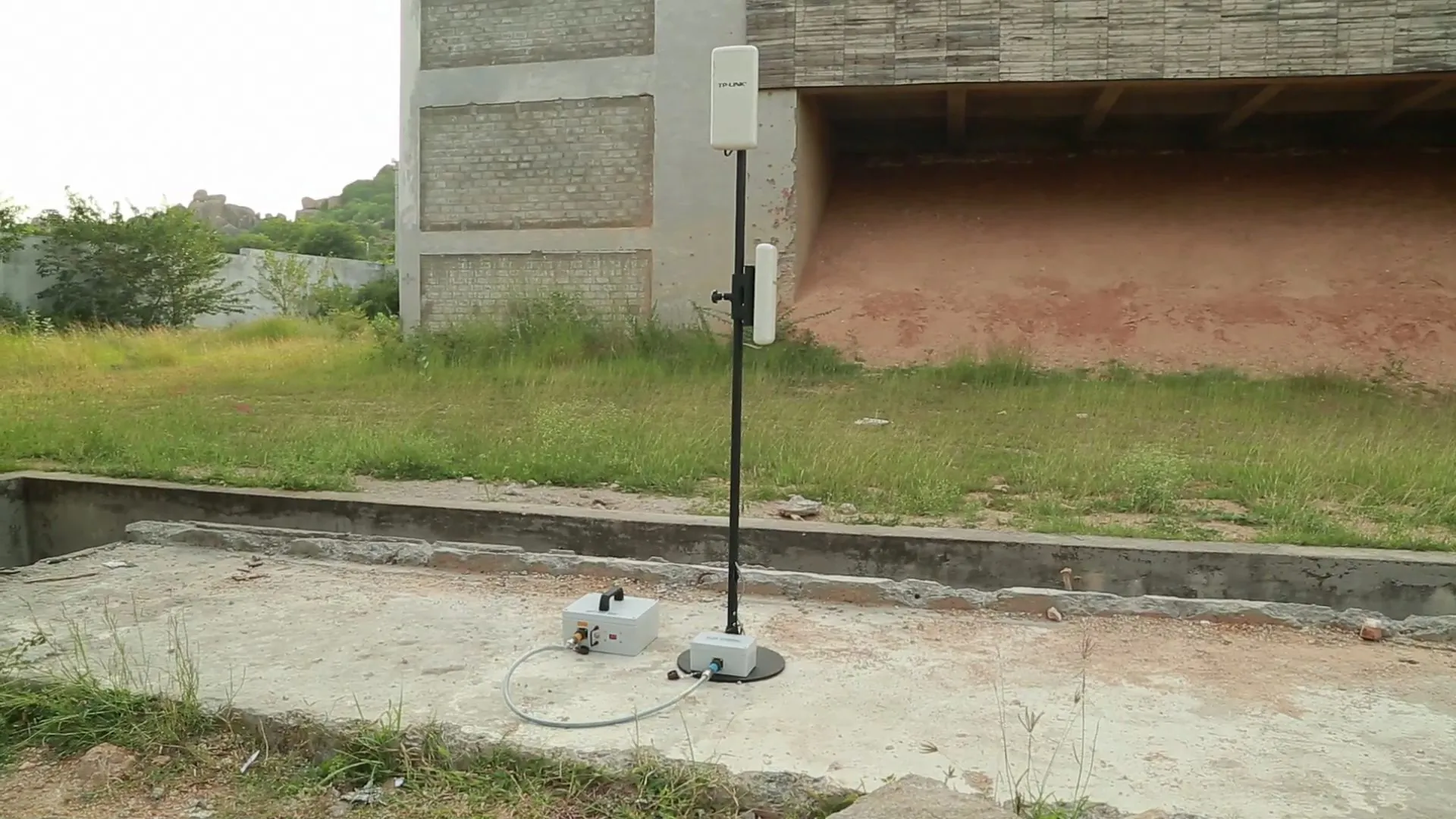

  • Comes in both wired and wireless configuration

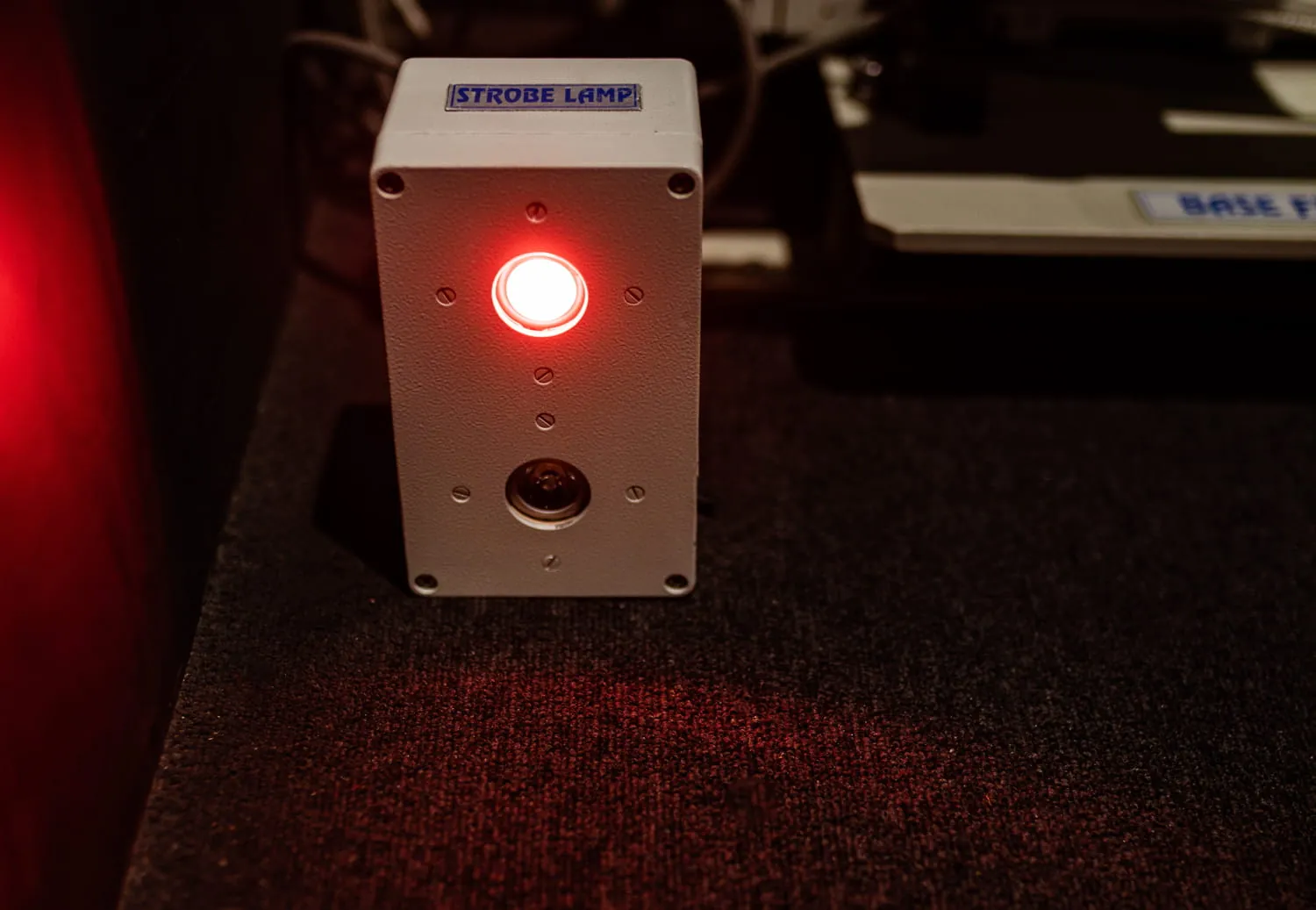

  • Contains night-illumination facility at each target
  • Operates between 0-50°C
  • Detects projectiles having a residual velocity of 450 m/sec or more at the Target End, irrespective of the firing distance
  • LOMAH includes option for zooming in and zooming out and panning of the target on the screen
  • Allows operator to designate the firing exercise to be fired i.e., Lane 1-2 for Grouping/Zeroing exercises, Lanes 3 and 4 for Application/Classification and so on
  • Stores all training (firing) data collected and allows printing the data at any time
  • Provides at each target and firing point a Lane Number Recognition (LNR) Unit
  • All components of LOMAH are rain and rust proof
