ZEN Integrated Mortar Simulator is a versatile mortar training simulator for 81mm Mortar, used for acquiring and enhancing the skills of Mortar Fire Controllers (MFC), Mortar Position Controller (MPC) and the Mortar Detachments in the techniques of engaging and effectively destroying / neutralizing targets.

This integrated mortar simulator system has ‘to scale’ Mortars, fully integrated with the Mortar Fire Controllers module and enables collective training of the Mortar Fire Controllers, Mortar Position Controller and the Mortar Detachments. The Simulator is designed to take on 81/82mm Mortars of both Eastern and Western Block countries. It has switching mode for Degree-Minute, Mils (6000 and 6400) as per requirement.

The ZEN 81mm Integrated Mortar Simulator system is provided with Instructor Station, Mortar Fire Controller Station, MPC Station and 4 /6 ‘To Scale Mortars’, all perfectly integrated with the software. It also facilitates engagement of target by single or multiple mortar platoons with composition of four / six Mortars per platoon.

The system recreates range conditions for the Mortar Fire Controllers enabling conduct the firing as in actual scenario, acquire target and pass data to Mortar Position Controller. The data is applied on Mortars and fed back in the system. Fault location at each stage is possible and the training is close to reality. The simulator drastically cuts expenditure on ammunition, fuel, logistics, training time and effort while accomplishing 100% training objectives.

The Training Simulator provides a wide range of 3D scenarios for all types of terrains, variety of targets, ammunition effects like blast, blind, splinter, flare, incendiary, smoke screen, coloured smoke, illumination etc. Environment effects like clouds, fog, day/night, moon phases and wind etc. It generates realistic sound effects.

• Indoor training
• Available for training throughout the year, day / night
• Trains Mortar Fire Controllers, Mortar Position Commanders and Mortar Detachment
• ‘To Scale’ Mortars integrated in loop
• Static and moving targets of various types
• Provides adequate landmarks / reference points for target indication
• Specially modified binocular with graticules for correction of fire by MFC
• Engagement of target by multiple fire units
• Wide choice of Terrains with ‘to scale maps’
• Wide range of environment effects
• Realistic Sound Simulation
• Data analysis and fault finding capability at every stage
• Zoom, Look-around, Recording, Replay and Retrieving facility
• Data base for recording and storing targets
• Evaluation facility for judging individual skills
• In built facility to train the trainers

The system consists of :

• Instructor Station with four monitors

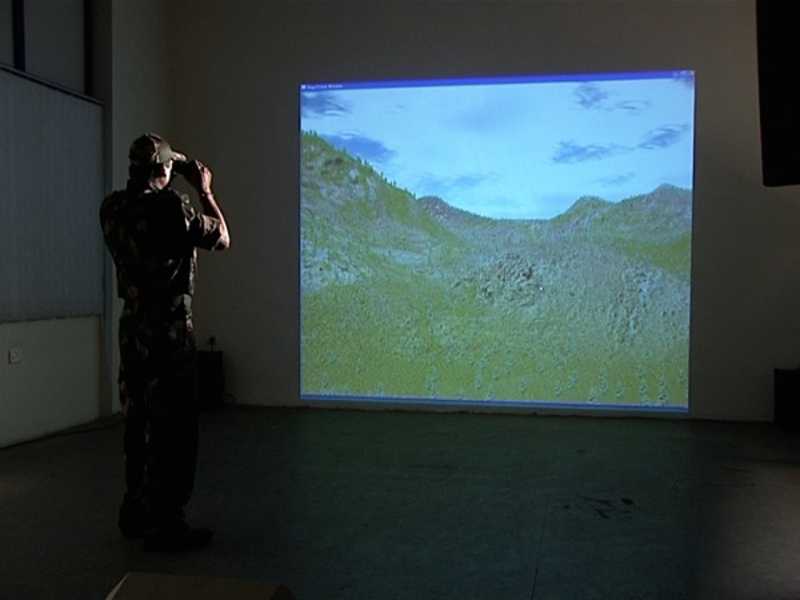

• MFC Station with a screen and a projector
• MPC Station with a computer

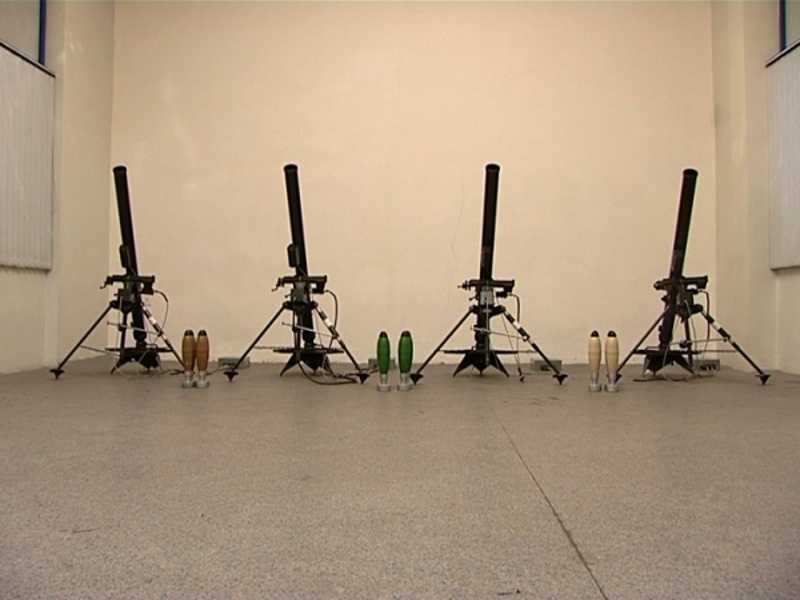

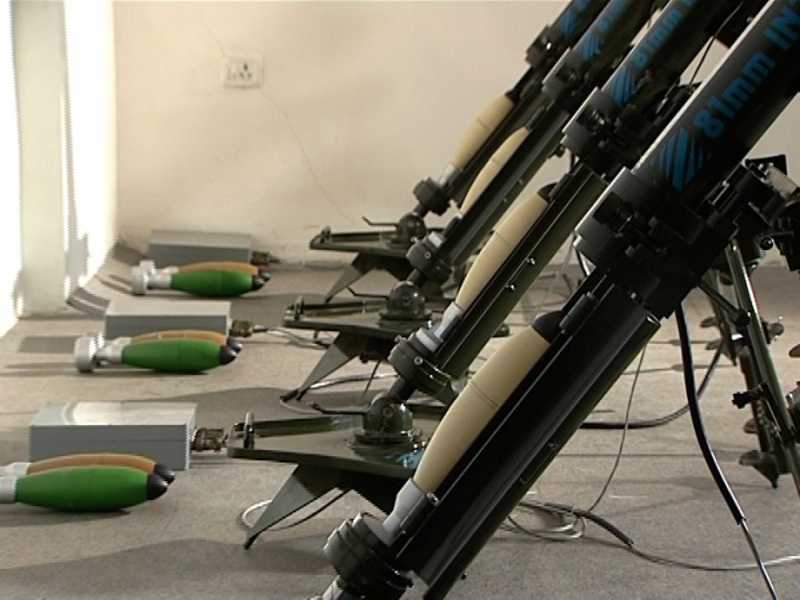

• 4 X ‘ To Scale’ Mortars with wireless sensors
• UPS, Speakers and supporting hardware

VERSIONS : ZEN 81MM INTEGRATED MORTAR SIMULATOR

• ZEN 81MM INTEGRATED MORTAR SIMULATOR (BN)

  Designed for Mortar Platoons of Battalions where the strength of a platoon is limited to man 4 /6 Mortars.

• ZEN 81MM INTEGRATED MORTAR SIMULATOR (MECHANISED)

  Designed for Mortar Platoons of Mechanized Infantry Battalions equipped with Infantry Combat Vehicles, Armoured Personnel Carriers or Heavy Troop Carriers.

Power supply of single phase, 220 volts, 4 KVA, 50 Hz AC and single phase 220 volts power points with 15 Amps & 5 Amps at the Instructor Station
