Zen UAV Mission Simulator (Zen UAV Sim)

  • Offers basic, mission and operational handling training
  • Lends itself to exercise and evaluation of complete operational procedures of different missions/profiles and payloads
  • Provides individual as well as team training (stand-alone mode for individual training and integrated mode for team training)
  • Trains the operators to handle fault/emergency conditions, bad weather, poor visibility and special payloads like Ground Moving Target Indication (GMTI), Synthetic Aperture Radar (SAR), Maritime Patrol Radar (MPR), Inverse Synthetic Aperture Radar (ISAR), Communication Intelligence (COMINT) and Electronic Intelligence (ELINT).
  • Assesses the proficiency level of trainees
  • Includes all the features of GCS/LRS/UAV flight and payload functions
The following are the major assemblies:
  • External Pilot Training Station
    1. EPTS Audio Visual System
    2. EPTS Instructor Operating System
  • Internal Crew Training Station
  • ICTS Instructor Operating System
    1. Ground Control Station
      • Observer Console

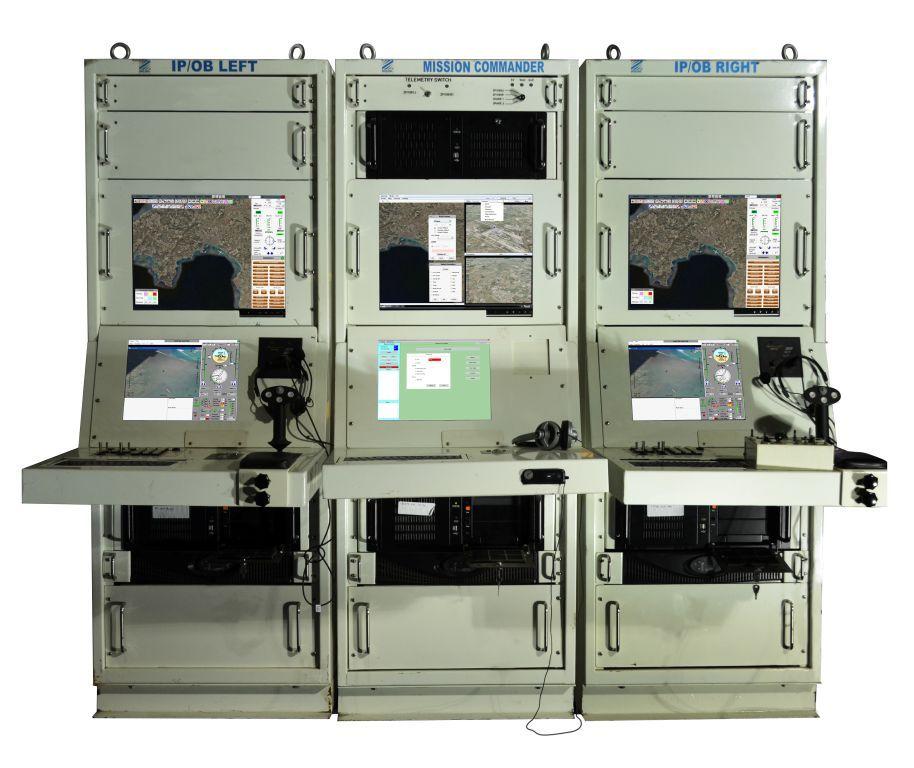

      • Mission Commander Console
      • Internal Pilot Console
    2. Ground Exploiter Station
      • Radar Manager Console
      • Interpreter / Exploiters Console
      • COMINT Console

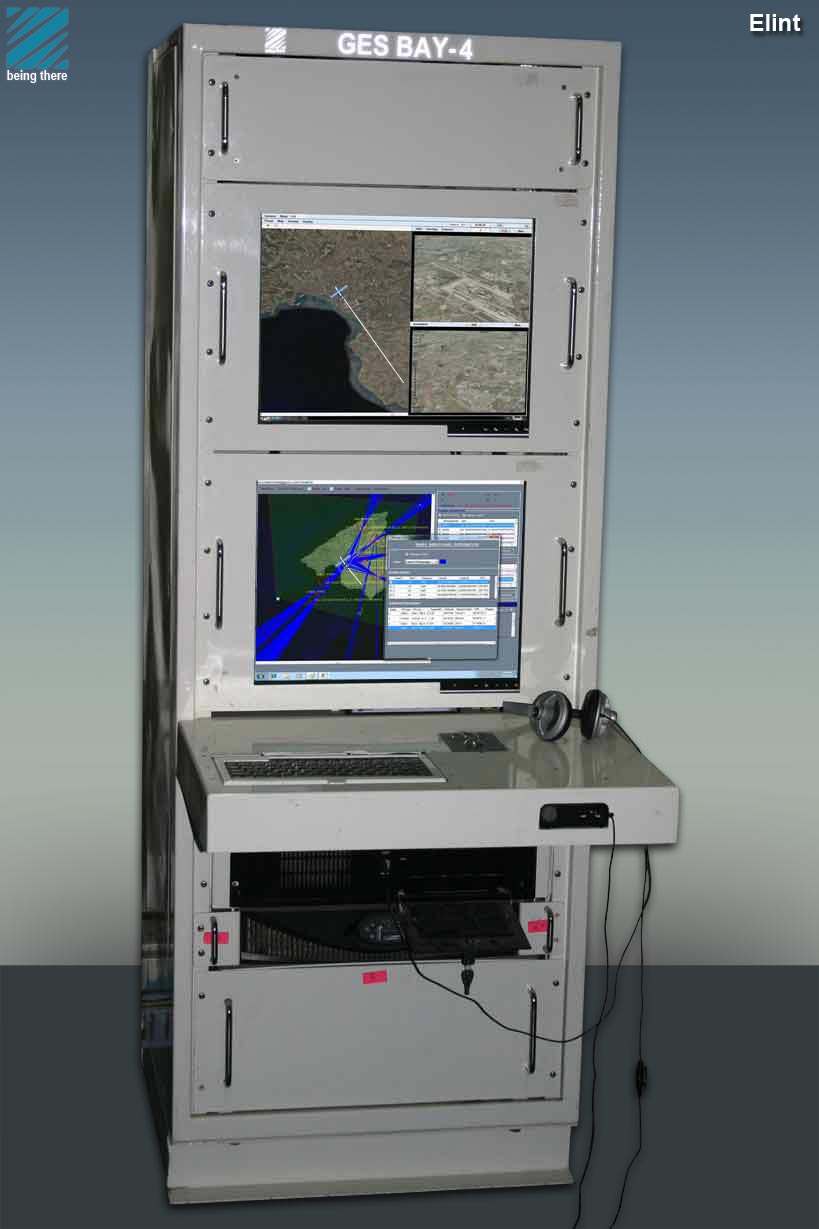

      • ELINT Console
  • Server Console
  • Power Distribution Console
  • Power conditioning and UPS system
  • Diesel generator set
External Pilot Instructor Operating System

  • Generates and controls all the instructor settings and functions
  • Houses the External Pilot Simulator System that provides flight dynamics of UAV and camera views to the projectors

  • Employs 4 projectors to display the Runway, its associated markings/objects and UAV on a
    2400(H) x 800(V) spherical dome
  • It faithfully reproduces aircraft engine and ambient sound through a 5.1Ch, Audio Amplifier
    and Speaker system

  • Operation of GCS Instrument Bays
  • Flight management and control
  • Emergency/malfunctions
  • Aircraft subsystem indication/operation
  • Real-time Telemetry handling
  • Payload handling (Video FLIR)
  • Navigation tracking system simulation (including range and azimuth for plotter/digital map operation)
  • Operation in different weather conditions
  • Data link System
  • Radio communications

  • Aircraft system malfunctions/failures
  • Servo-actuator malfunction
  • Sensor malfunctions
  • Data-link failures
  • Station indicator malfunction
  • Station control malfunction
  • Payload malfunctions
  • Desire warning malfunctions

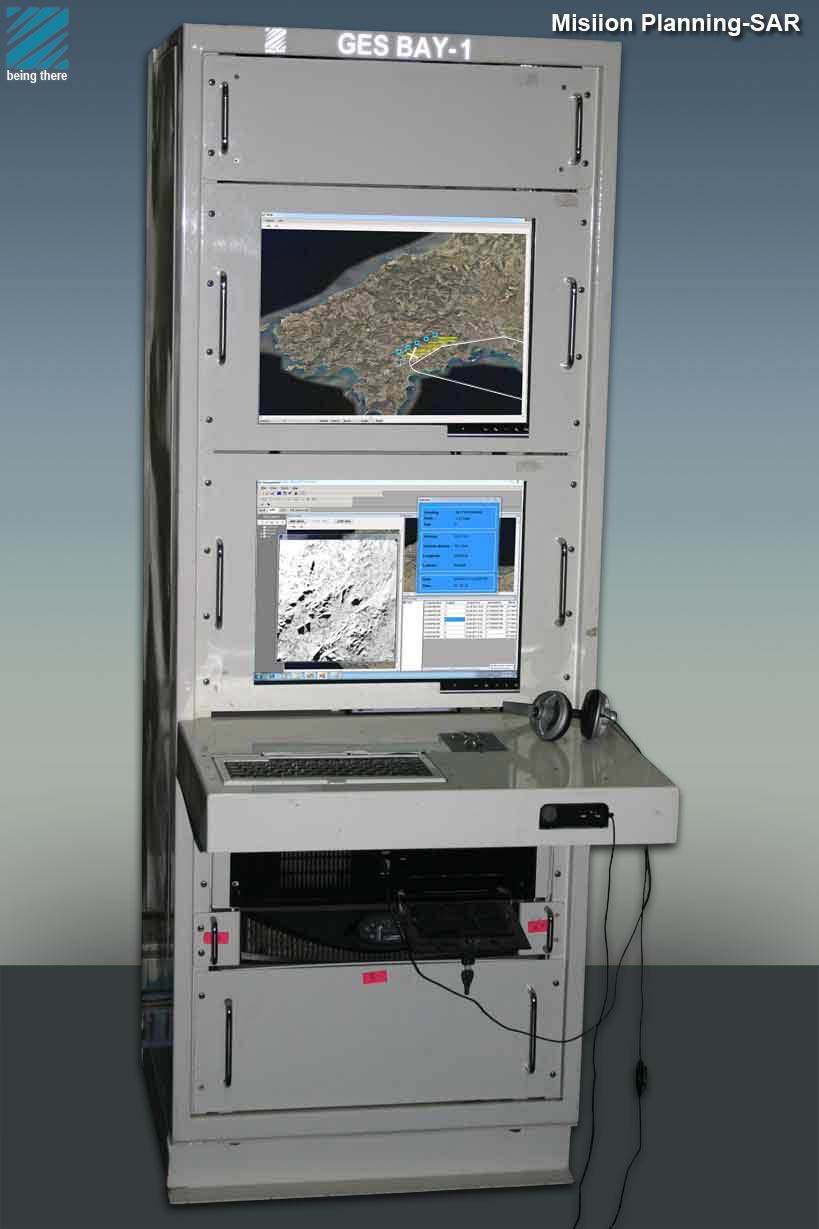

Mission Planning Synthetic Aperture Radar Mission Planning Ground Moving Target Indication
  • SAR/GMTI mission planning, mission monitoring and updating (re-tasking)
  • Scanning SAR Strip Region of Interest (ROI) for fixed-target detection
  • High-resolution Spot interpretation, for fixed-target classification and reporting
  • GMTI surveillance, detection and location of moving targets

  • Create, edit and/or update radar mission plan in accordance with the Priority Intelligence Request (PIR) list
  • Monitor, track and control radar operation on-line in accordance with the mission plan in progress
  • Initiate mission plan update(s) on-line, according to local interpretation findings and/or external PIR inputs
  • Interpret SAR imagery or GMTI plots activity stored in database
  • Normal Search (NS) mode

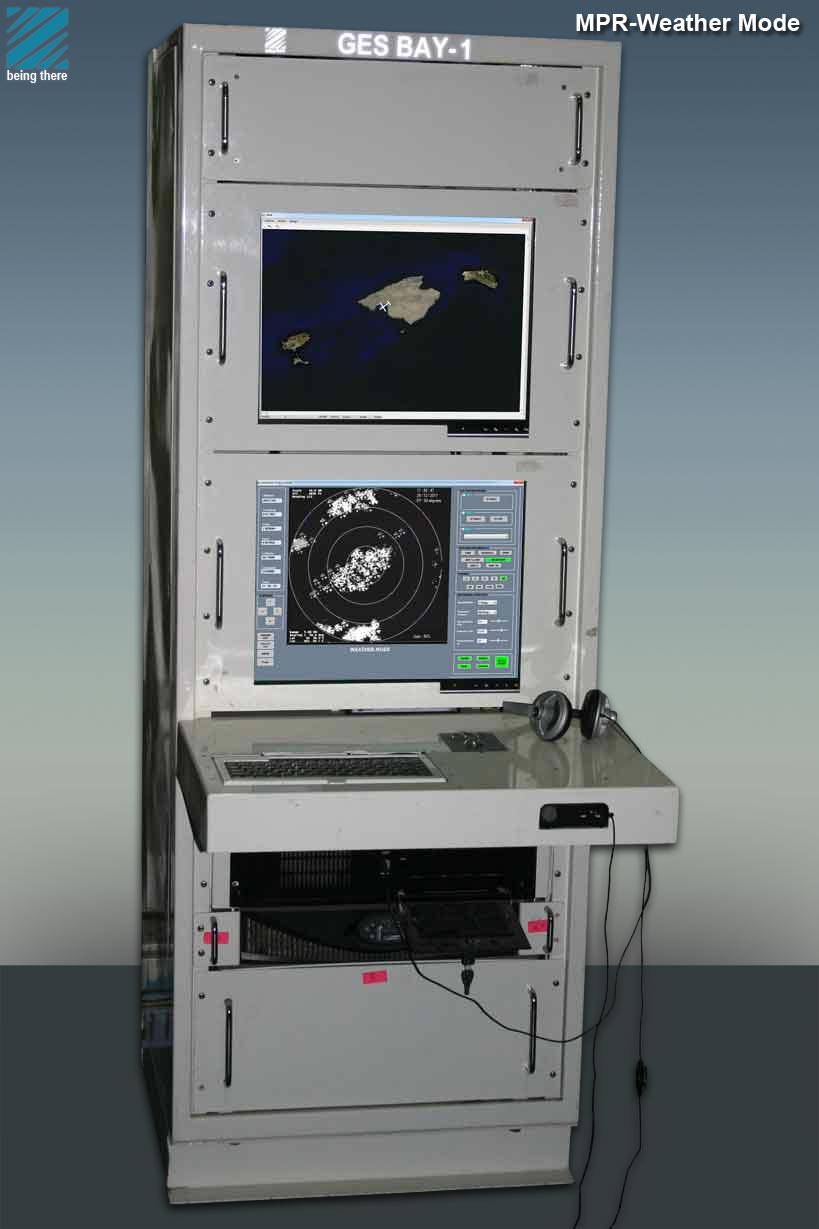

  • Weather (WTR) mode

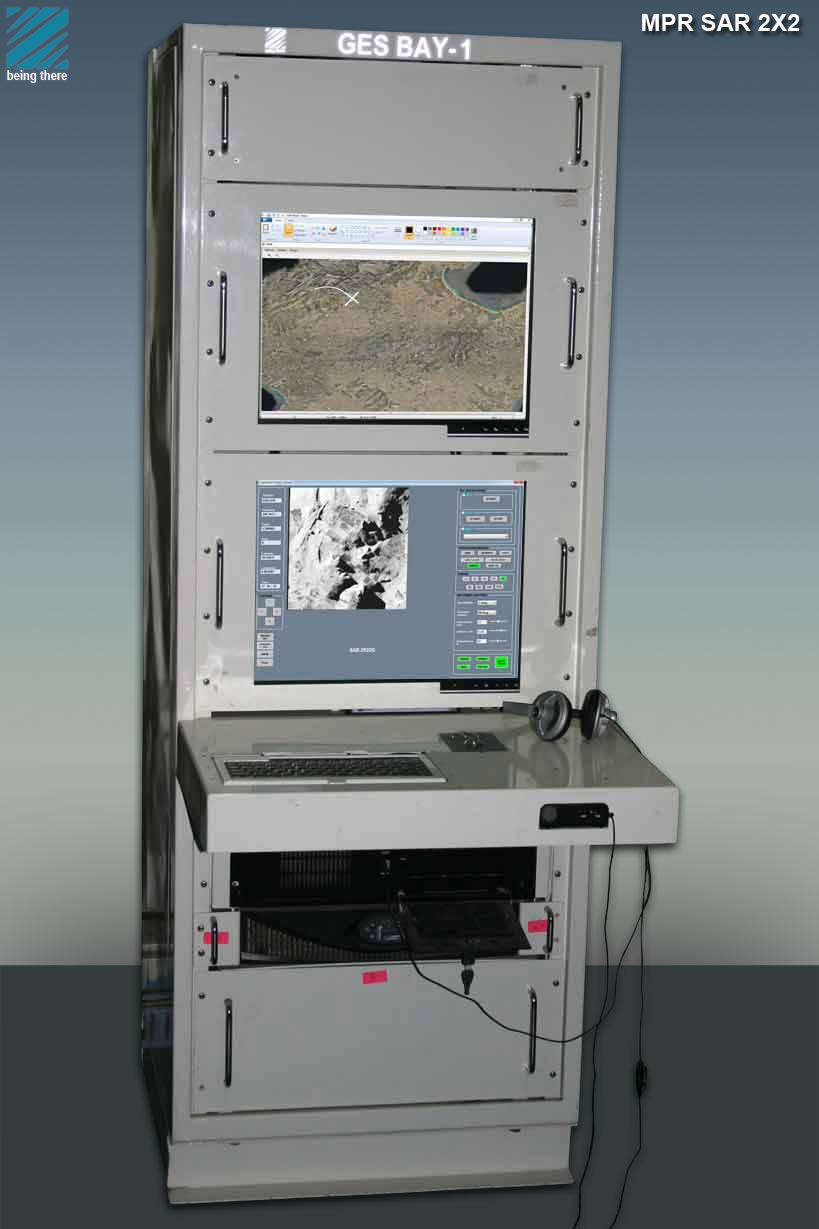

  • Synthetic Aperture Radar (SAR) Modes- 2 X 2 Kms and 4 X 4 Kms Spot Image
  • Inverse SAR (ISAR) Mode
  • Establish the EOB picture
  • Locate transmitting emitters
  • Attribute emitters to relevant nets
  • Monitor and analyze transmitted audio communication
  • Locates enemy radars on land and maritime surveillance
  • Finds direction of radars accurately
  • Updates Emitter library: Emitter Parameters Limit(EPL)
  • Interfaces with Navigation systems for aircraft position data (Latitude, Longitude & True-Heading)
  • Simulates integrated automatic built in test

For more information, please send

Enquiry

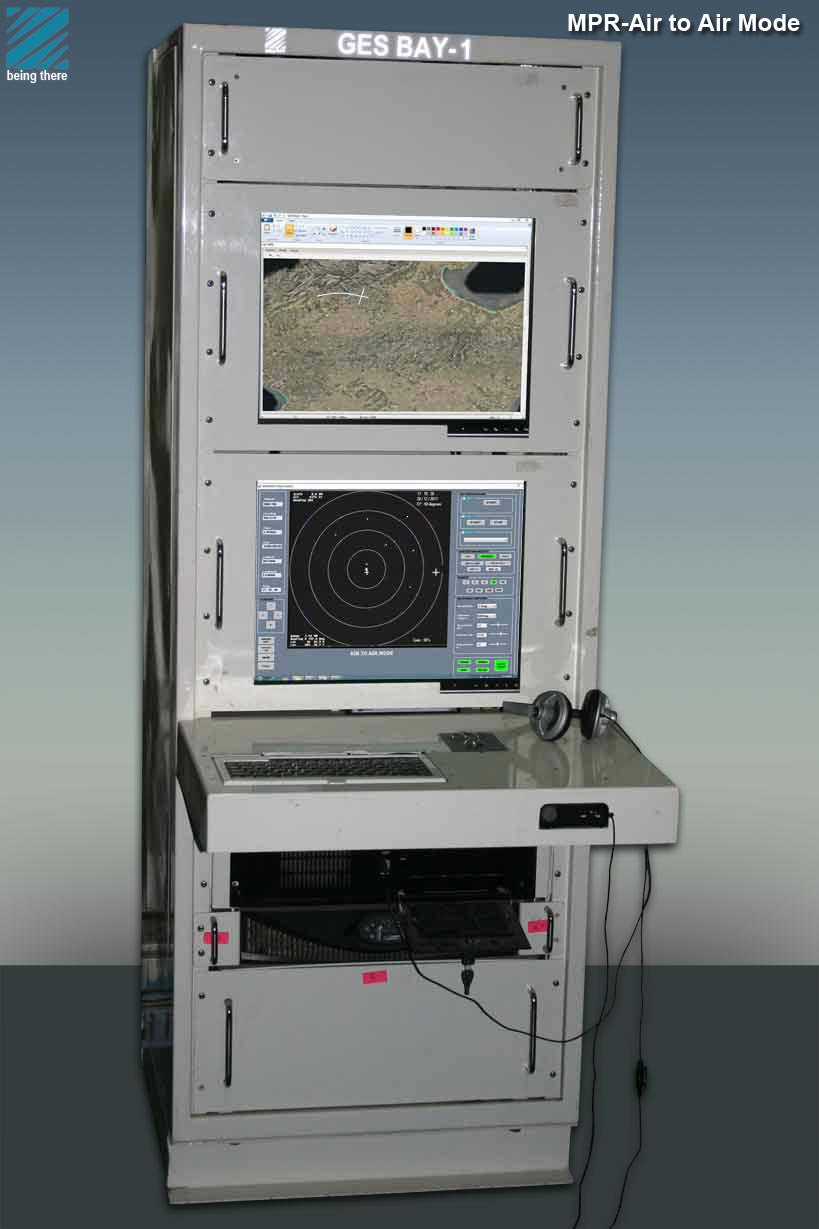

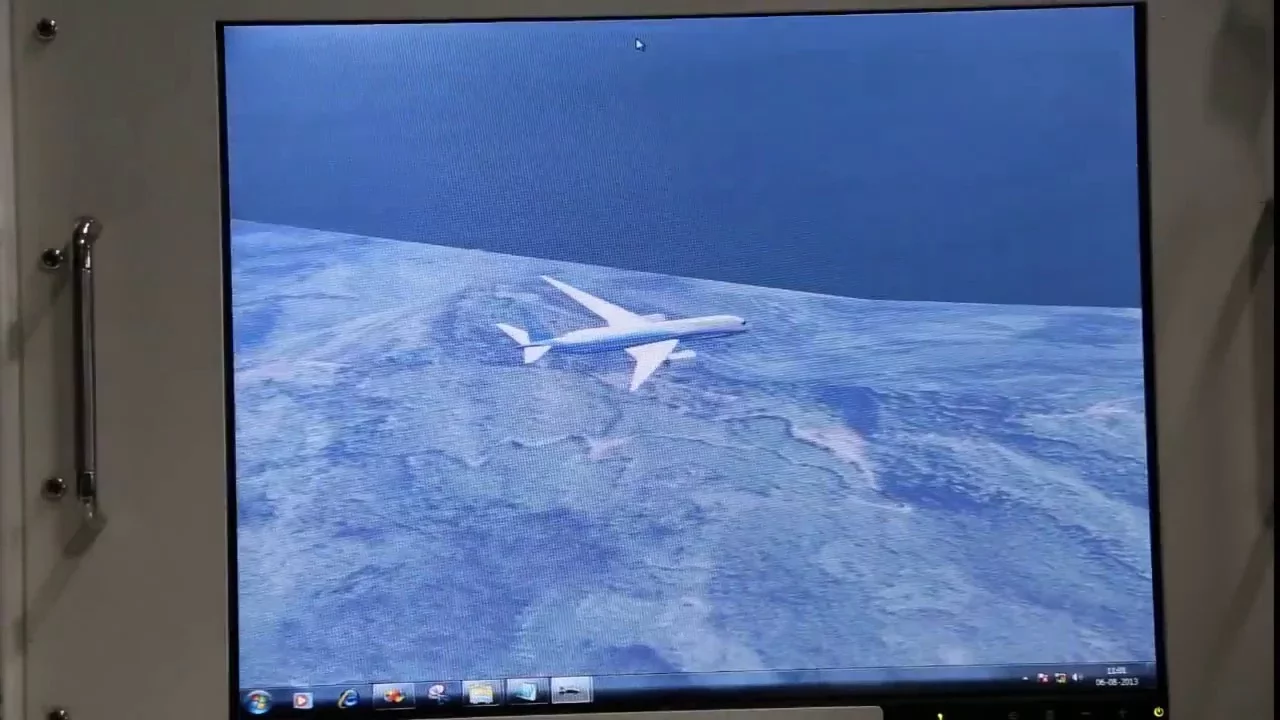

UAV Simulator: GCS Bays

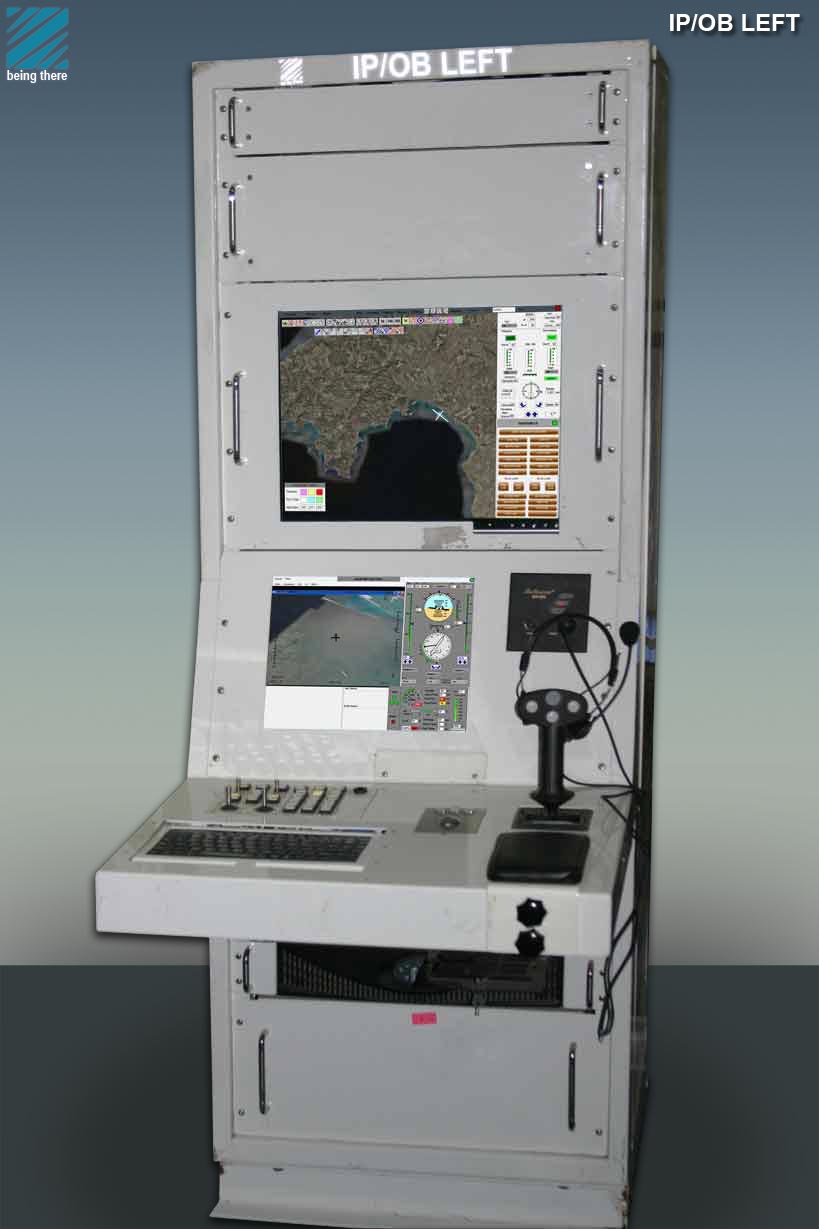

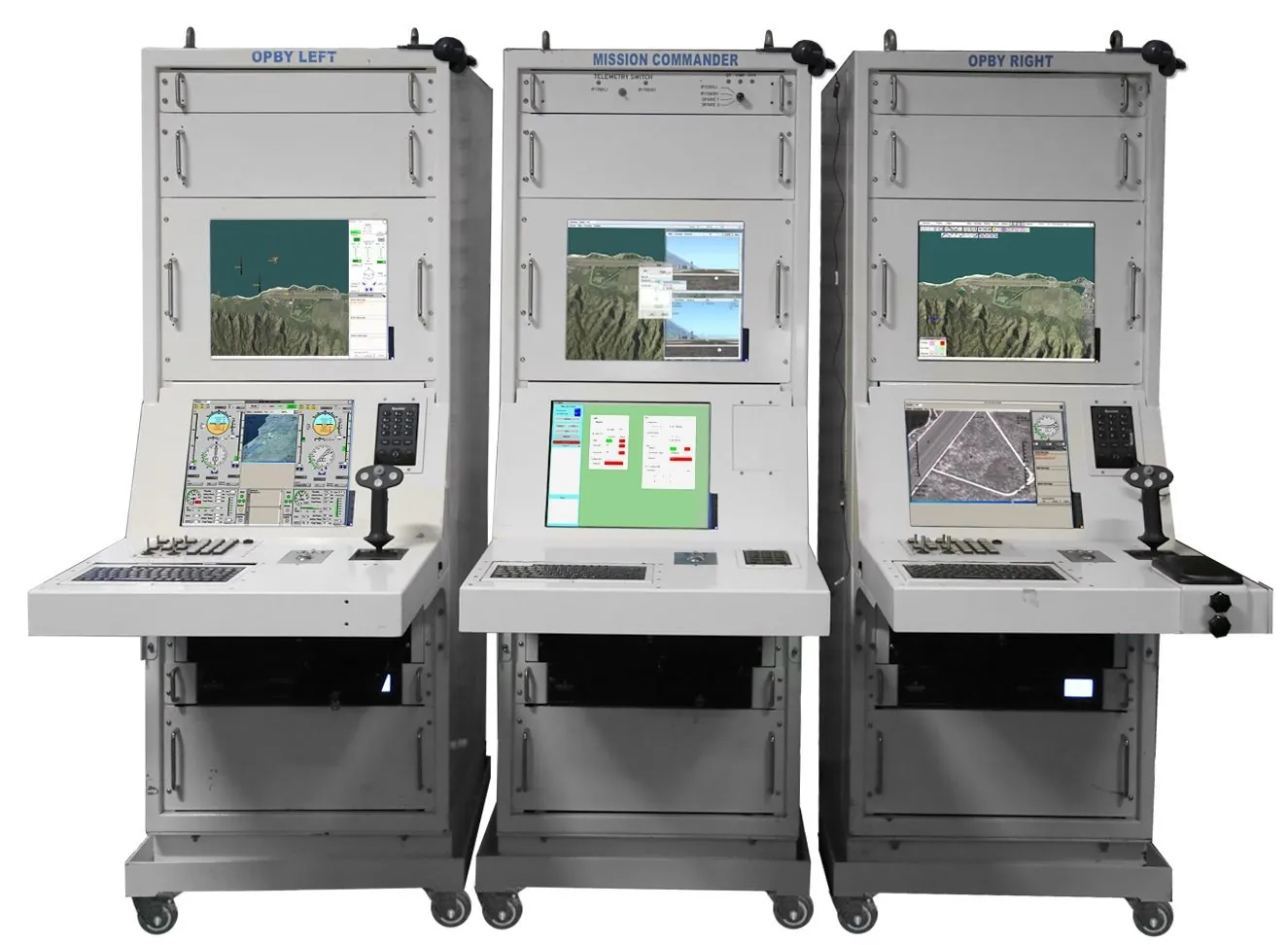

UAV Simulator: Replicated Ground Control Station

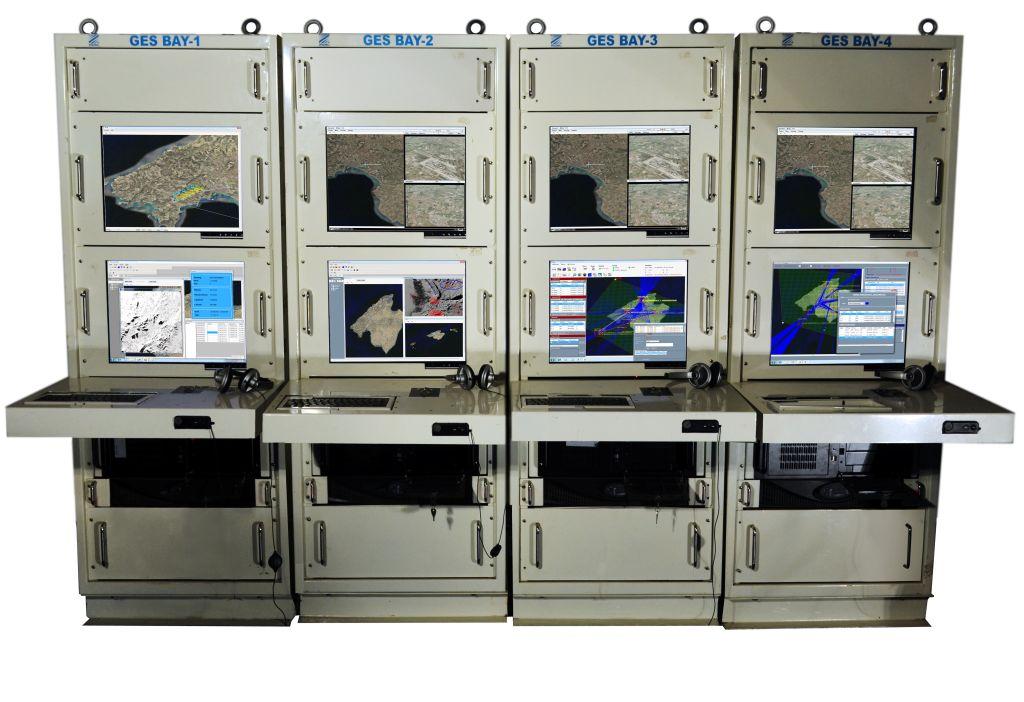

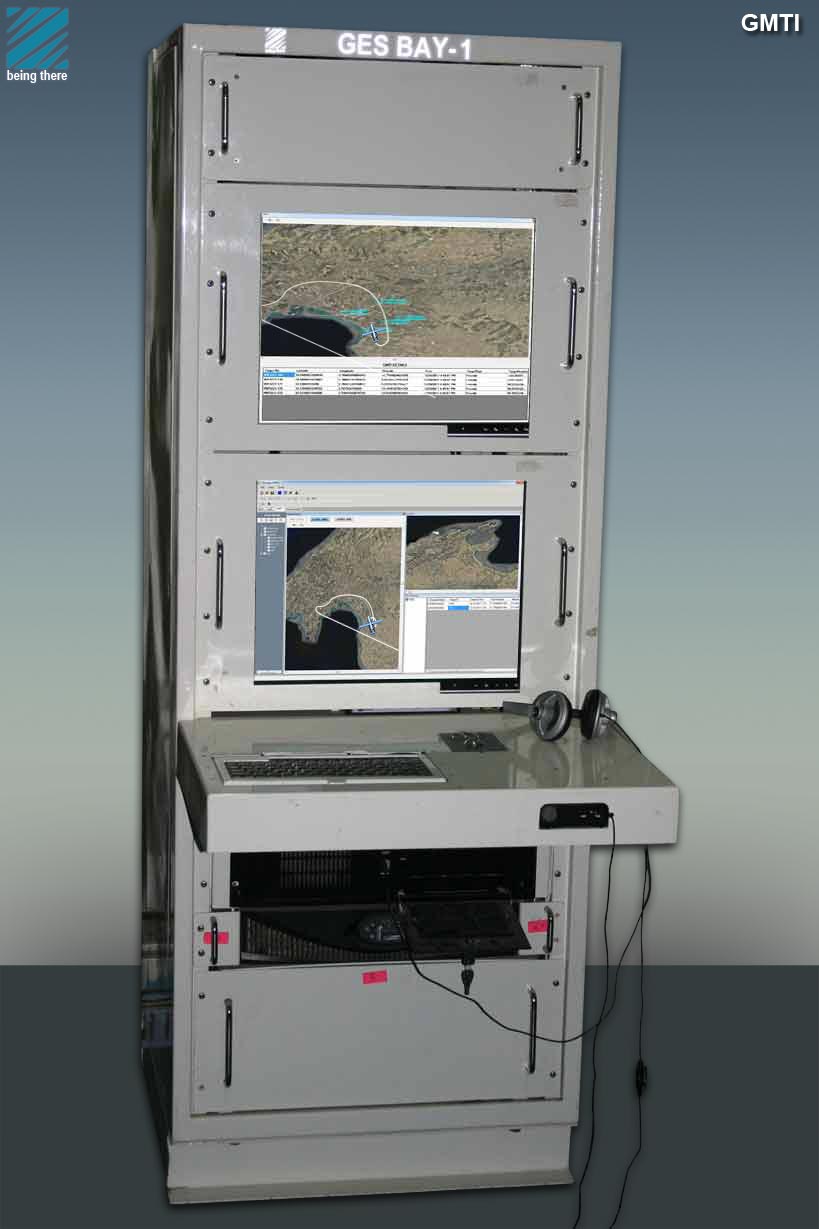

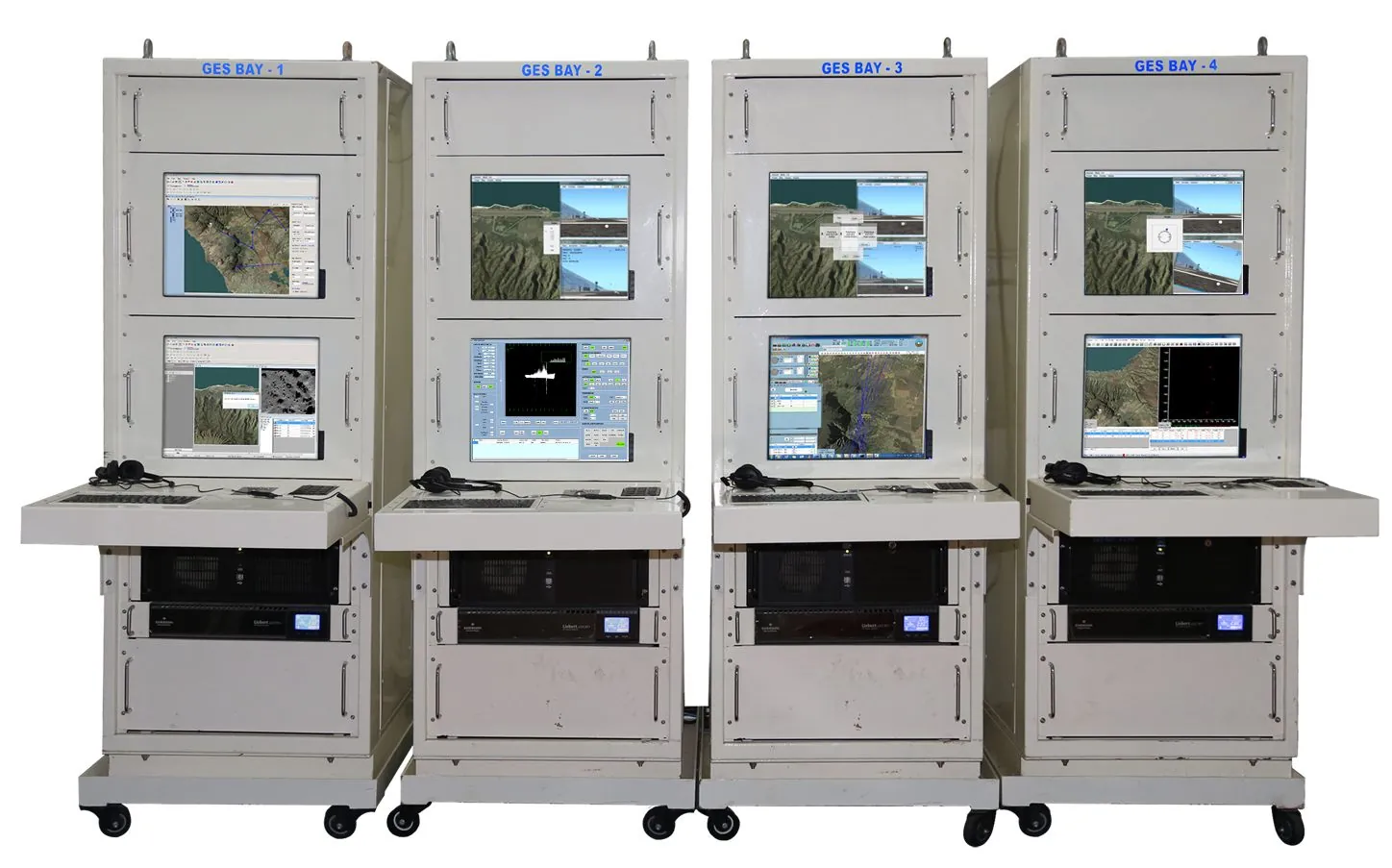

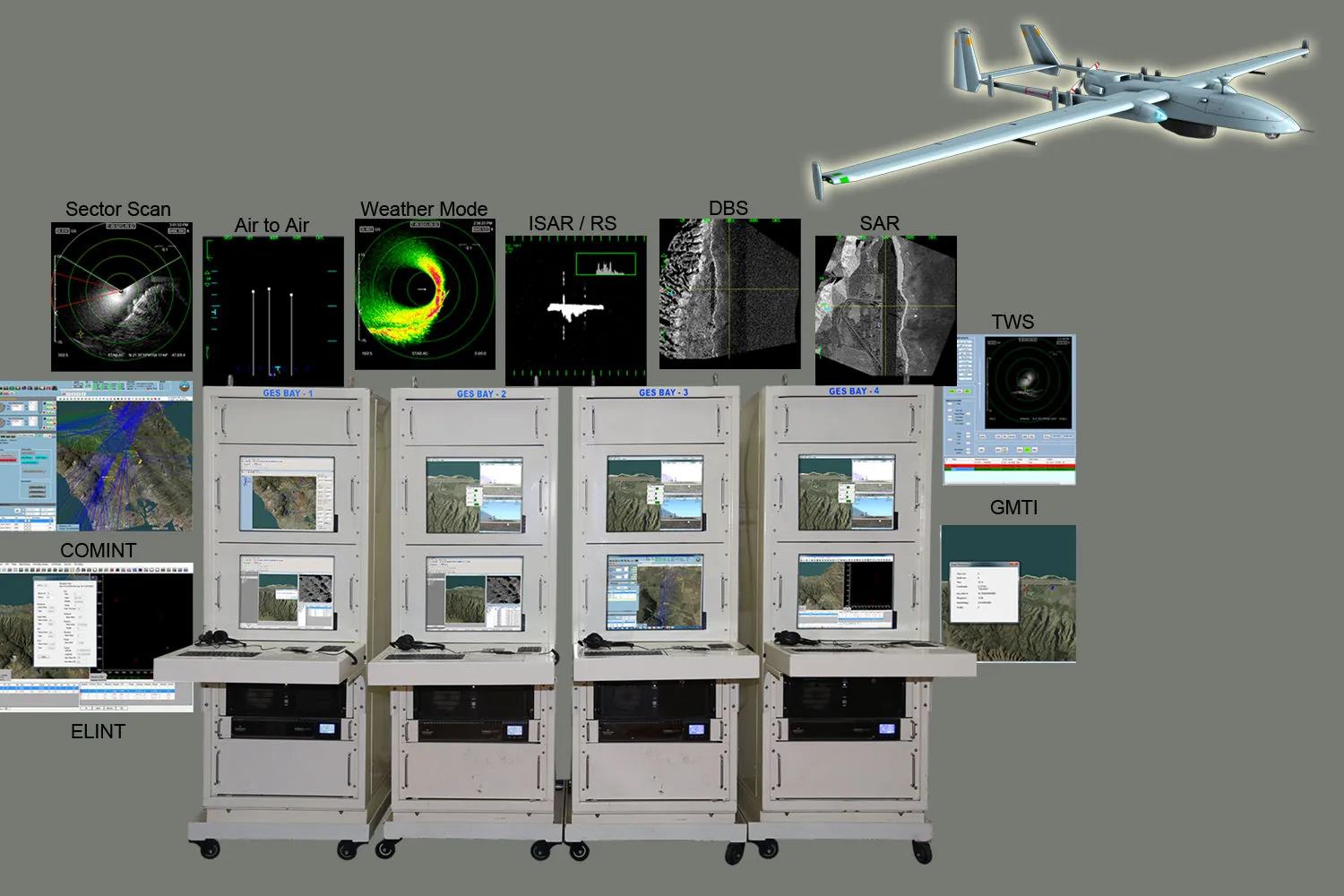

UAV Simulator: GES Bays

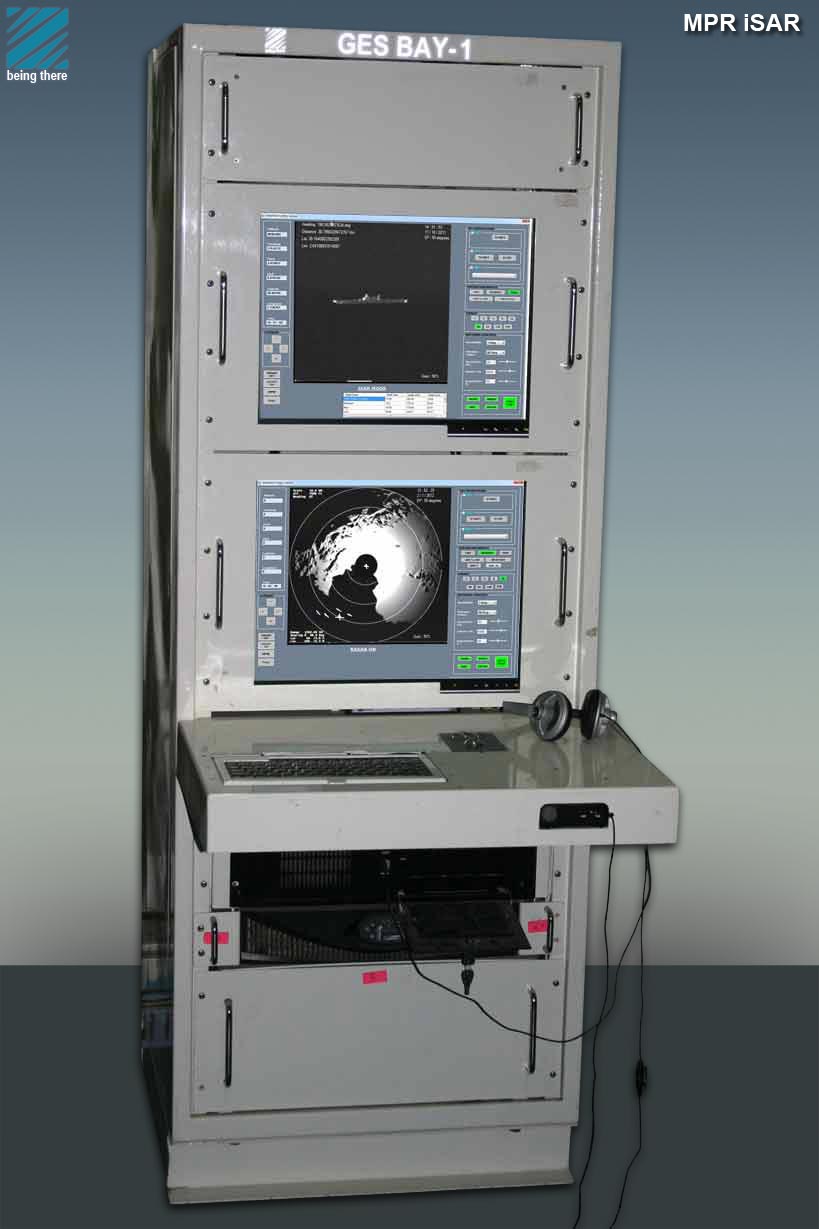

UAV Simulator: GES Bays
