Hawkeye epitomizes a state-of-the-art anti-drone system camera, featuring multiple sensor detection modules for all-weather drone tracking up to 15 km. It ensures continuous threat detection and enhanced security.

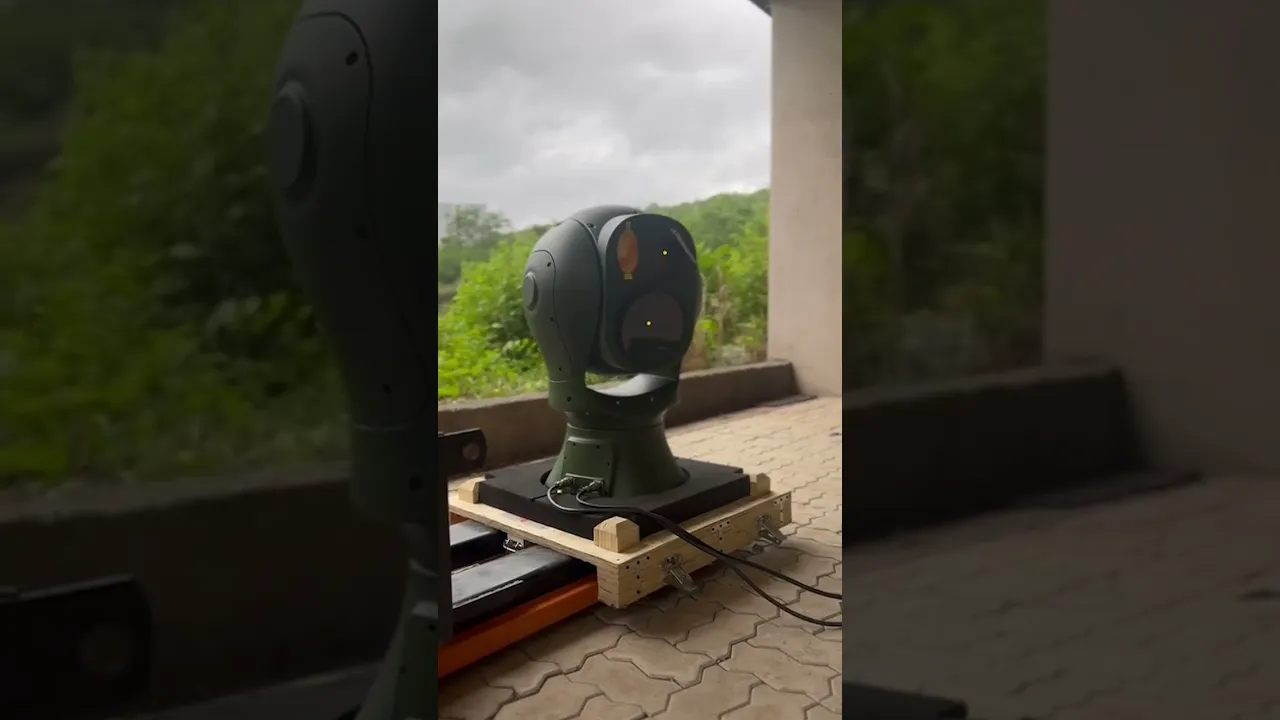

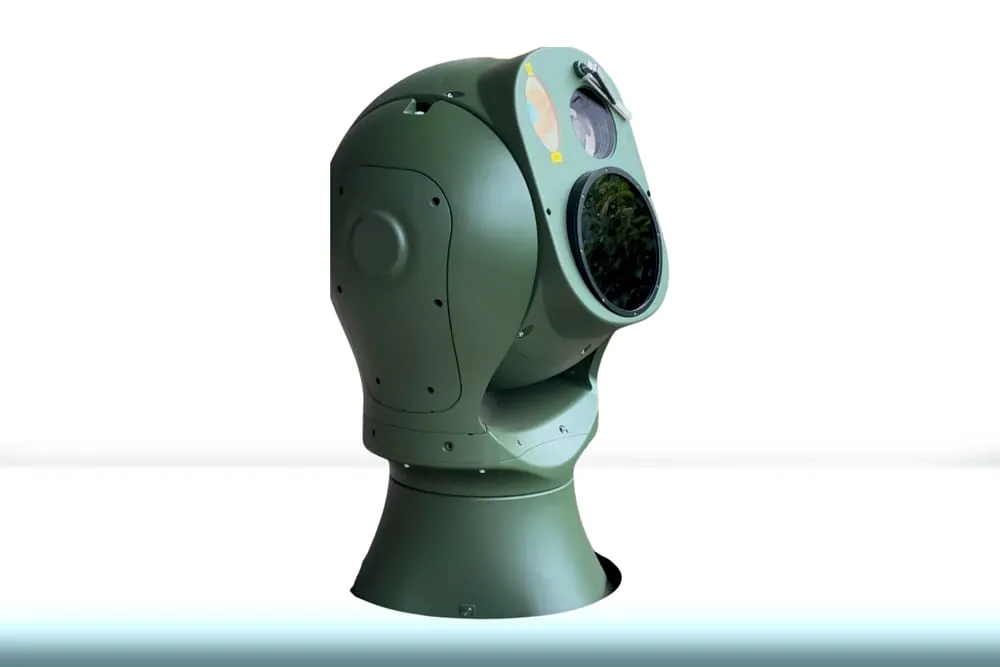

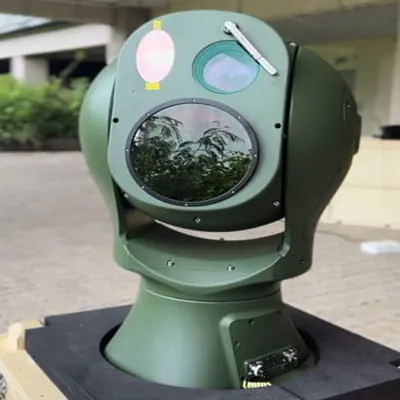

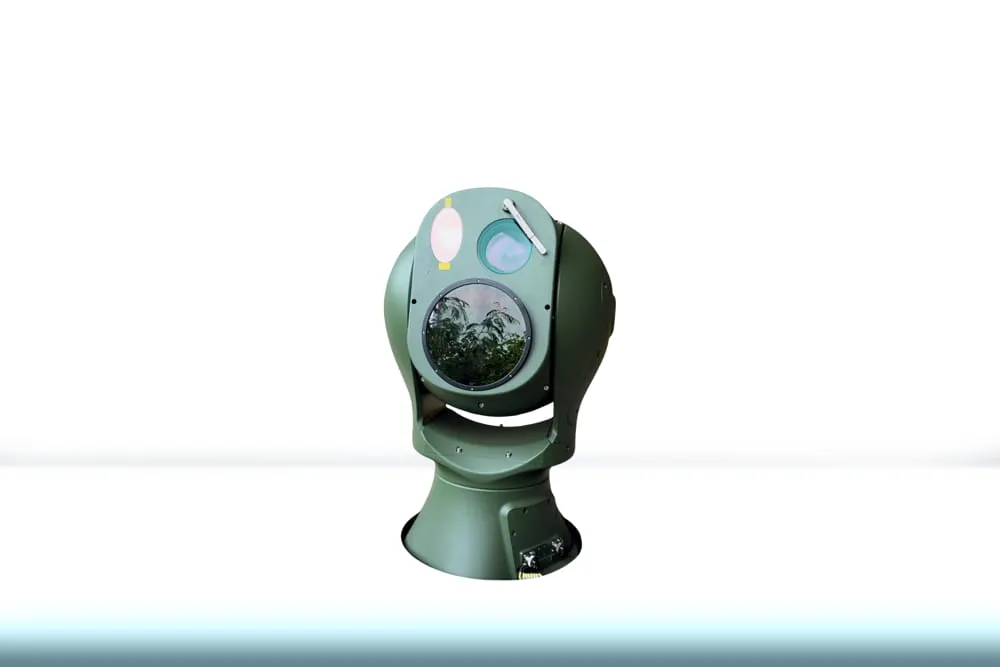

Long Range Multi-Sensor Optical Platform Camera:

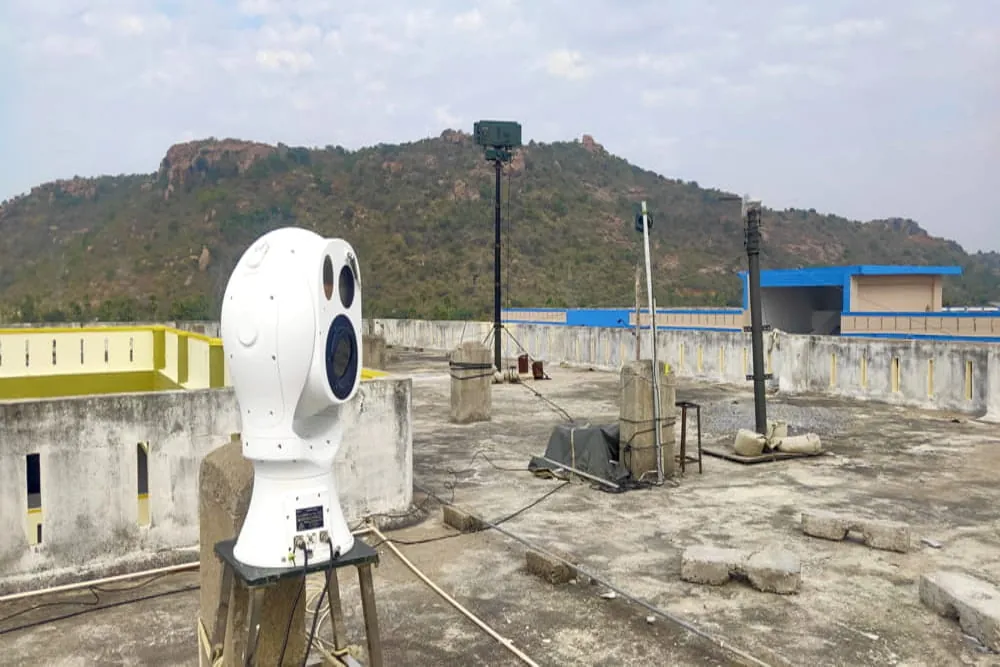

Our Multi-Sensor Optical Platform Camera, developed in-house, is tailored for critical surveillance in key areas like conference centers, prisons, and military bases. It integrates various detection modules for all-weather, full-dimensional target discovery and tracking of drones up to 15km. With MIL grade design and IP66 protection, it ensures stable operation in harsh environments. It can also be integrated with radar and spectrum detection equipment to form an automatic UAV defence system, ensuring low-altitude safety day and night.
Features:
- Proper functioning in severe environment: Reinforced aluminum alloy housing.
- Extensive Coverage: Pan 0°~360°, Tilt -90°~+90°, realizing full dimension with detection.
- Rapid Maneuvering: The Camera can run at 60°/s with 120°/s2 acceleration with quick starts and stops, facilitating tracking of fast-moving targets.
- Precise Control: Utilizes precision angle encoders and high-precision servo control for 0.01° positioning accuracy and automatic focusing.
- Superior Tracking: Advanced algorithms and servo control achieve ±0.5 mrad tracking accuracy for stable tracking of fast and changing targets.
- Intelligent Features: Indigenously-developed software enables functions like hot spot alarms and radar linkage, enhancing system automation.
- Environmental Adaptability: EMI/EMC, IP66 Protection and robust construction makes it suitable for harsh conditions, including rain, dust, and electromagnetic interface.
Technical Specifications
Detailed Technical Specifications:
Model
HAWKEYE 640
Detection: Vehicle: 35km?Human: 15km UAV: 4km
Identification: Vehicle: 21km?Human: 9Km UAV: 2.5k
Thermal-Sensor: Cooled MCT sensor, 640*512 resolution?3~5um, 50h
Thermal-Lens: 90-1100mm; 12 X continuous zoom, 8X digital zoom
FOV: Auto Focus
Image Process:
- Image Enhancement: SDE.
- Color: White hot/Black hot.
- Brightness and contrast
- AGC, adjustable
- Digital Zoom: 2X/4X/8X
- Cross: Display
- Correction: Shutter/Background
Visible Camera Sensor:
- 1/1.8'' CMOS ; 0.0002lux super high sensitive color to B/W CMOS
- 2 megapixels,1920X1080
- H.264/MPEG4/MIPEG
- 32Kbps~16Mbps, 60Hz30 FPS
Visible Camera Lens:
12.5-775mm; 60X zoom, auto focus
Range Finder: 10km, accuracy ±2m, 20Hz?1570nm?RS422 control, work temp:-40~+55°C
PTZ Structure:
Dome Shape Structure, Three Window design, anti-strong wind
Rotation:
Pan: 0~360°, Rotation Tilt: +90°~-90°
Power Supply: With ultra-wide input power adapter, AC90V~305V to DC48V maximum power
consumption<=500W, stable power consumption<=150W
Data Feedback:
- Lens Servo: Support lens field of view, magnification, ZOOM/FOCUS value query, return, positioning function
- Pan Tilt Angle: Support horizontal, vertical angle real-time /query return, positioning function
Track Mode:
- Support front-end module automatic tracking
- Support automatic tracking of back-end software
Track Module:
- Video Interface: Support visible light/ thermal image video switching tracking
- Video Format: Composite video, PAL, NTSC
- Multi-Target Detection: Support multi-target detection
- Tracking Algorithm: Integrate multiple tracking algorithms, which can be switched manually/automatically according to different scenarios, and support recapture and lock when the target is temporarily lost.
- Target Size: adaptive gate, the size of the tracking frame changes automatically according to the target size
Speed:
- Pan Speed: 0.01°~60°/s ; Tilt speed: 0.01°~45°/s
- Acceleration: 80°/s2 Pan; 80°/s2 Tilt (max:200°/s)
- Speed Adaptive: With intelligent sensing shifting function, support lens focal length speed adaptive function
- Speed Mode: The highest speed mode can be set.
- Drive Mode: Direct drive with high torque rare earth permanent Magnet synchronous motor, high speed start and stop, smooth and smooth
Environmental Indicators:
- Working Temperature: -40°C ~ + 60°C
- Storage temperature: -45°C ~+ 70°C
- Humidity: < 90%
- Protection: IP66.
Weight: 105kg (with load)
